STANDARD BYKE OS20 125R FRAME

STANDARD BYKE OS20 125R FRAME

STANDARD BYKE OS 125R  FRAME

Our OS20 (over size 20") frame has geometry that has been adjusted to ride like our 20" 125R and be able to fit and take full advantage of the larger diameter wheels.

The R-Series –  is the only BMX race frame to combine light weight, strength and race geometry in one package. The original 125 was the first BMX race frame to incorporate the threadless fork/stem combo. This frame pioneered the use of high-tech air hardened tubing.Today’s 125R has over 18 years of development and refinement.

This frame comes stock with disc brake mount

TOP TUBE LENGTHS: 21", 21.25", 21.50", 21.75", 22".

Headset Type: Integrated (Campy Spec)

Brake Mounts: DISC or canti
BB Type: Euro
BB Height: 11.625"
Chainstay: 14.15" slammed
Headtube Angle: 74.5°
Seattube Angle: 71°
Seattube Height: 8.25" (210mm)
Seat post Size: 27.2mm
Seat Clamp: 1-1/8"
Dropout Size: 3/8"
Weight: 3.8 lbs



the 22.5 are custom top tubes we special ordered!

Select TOP TUBE
Select Color
Select brake
From $192.50

Original: $549.99

-65%
STANDARD BYKE OS20 125R FRAME—

$549.99

$192.50

More Images

STANDARD BYKE OS20 125R FRAME - Image 2

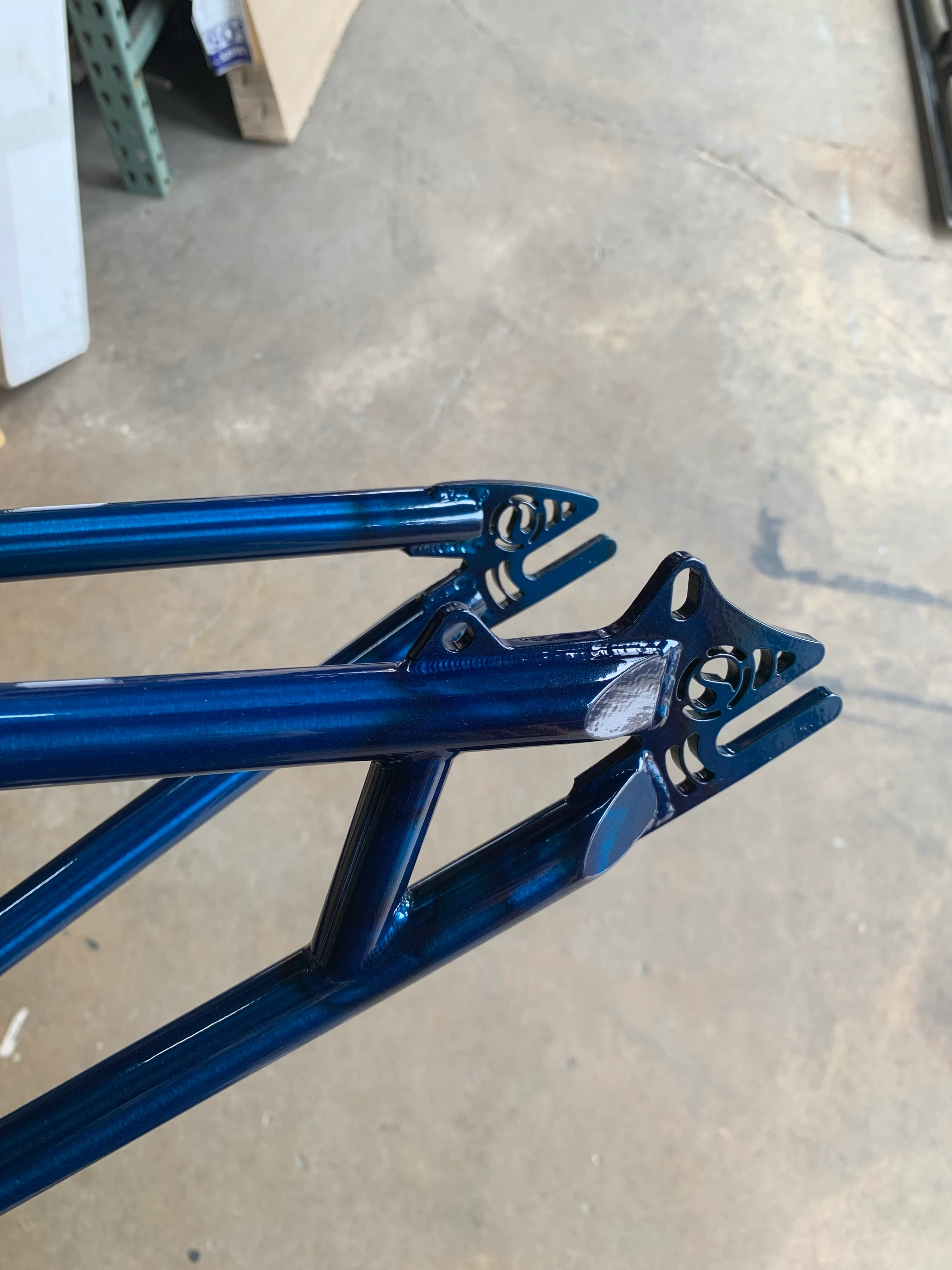

STANDARD BYKE OS20 125R FRAME - Image 3
STANDARD BYKE OS20 125R FRAME - Image 4

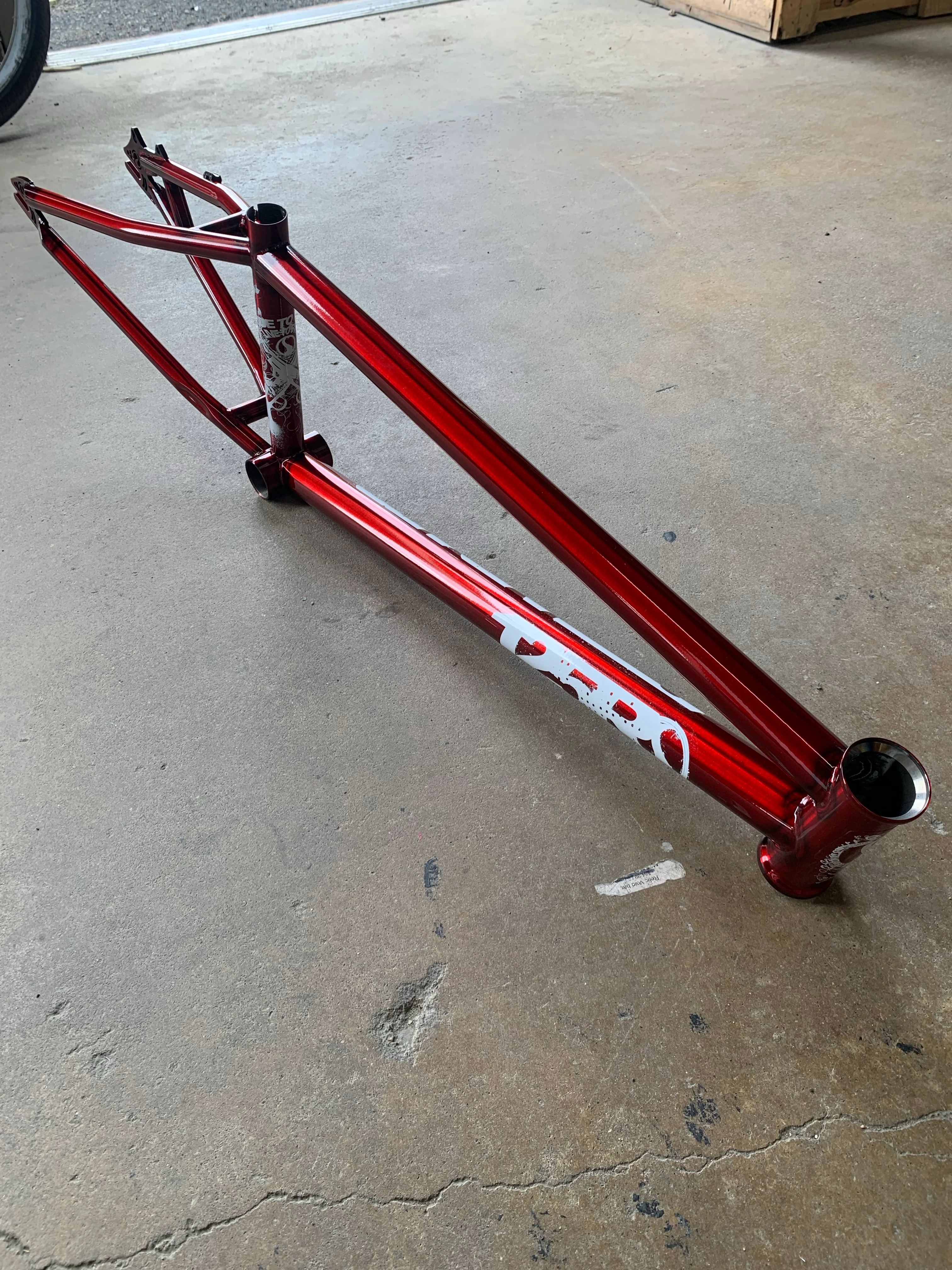

STANDARD BYKE OS20 125R FRAME - Image 5
STANDARD BYKE OS20 125R FRAME - Image 6

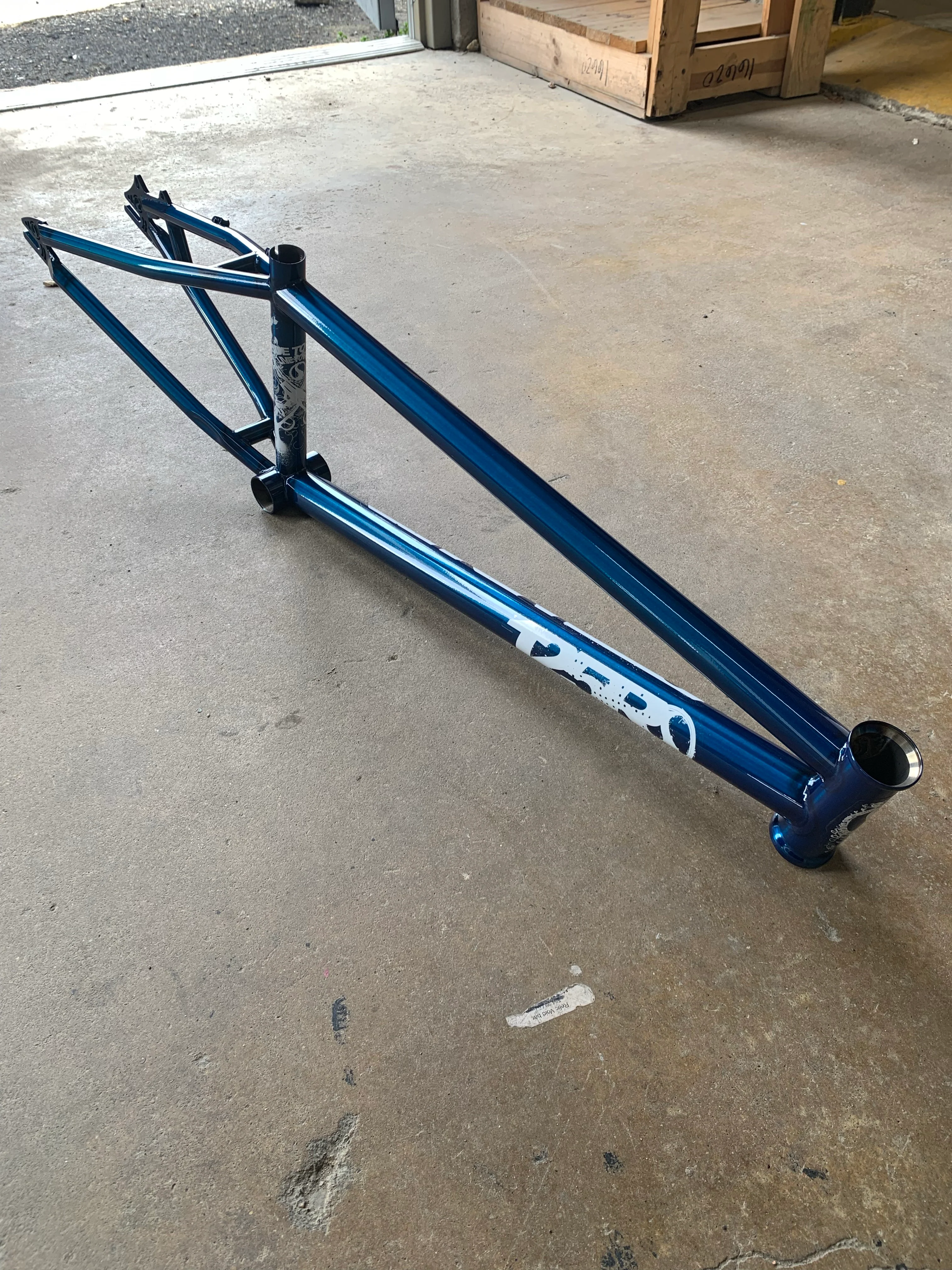

STANDARD BYKE OS20 125R FRAME - Image 7

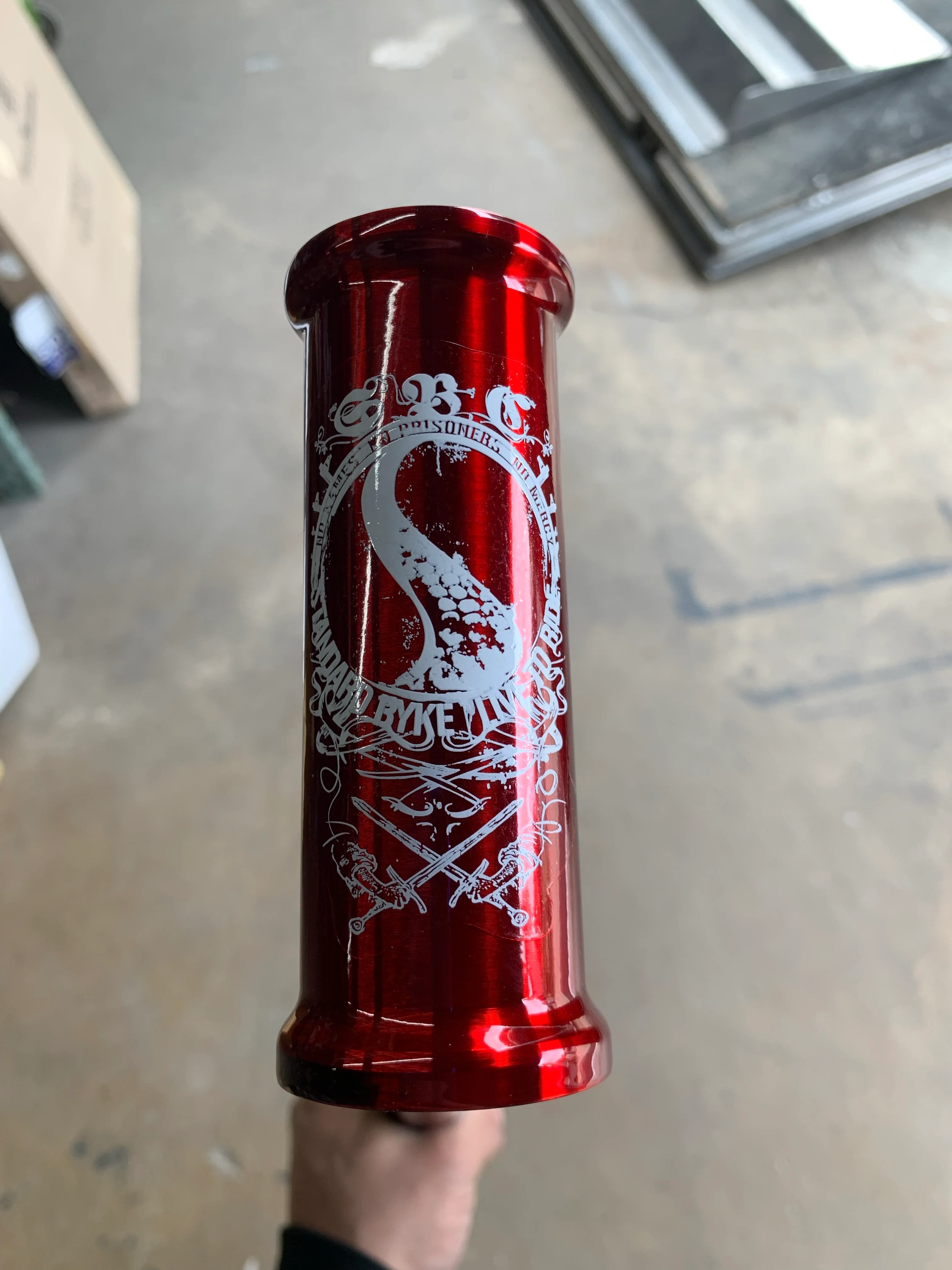

STANDARD BYKE OS20 125R FRAME - Image 8
STANDARD BYKE OS20 125R FRAME - Image 9

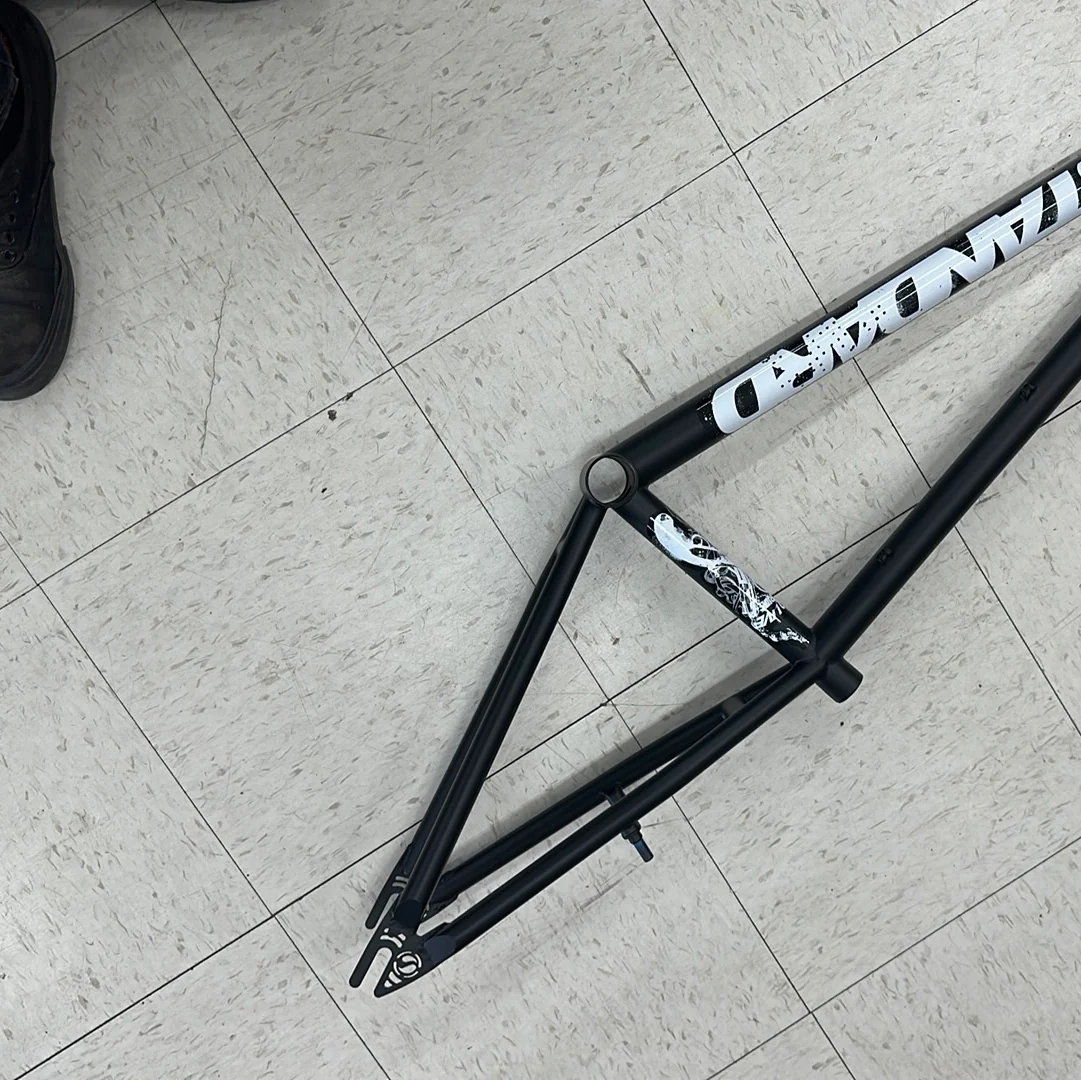

STANDARD BYKE OS20 125R FRAME - Image 10

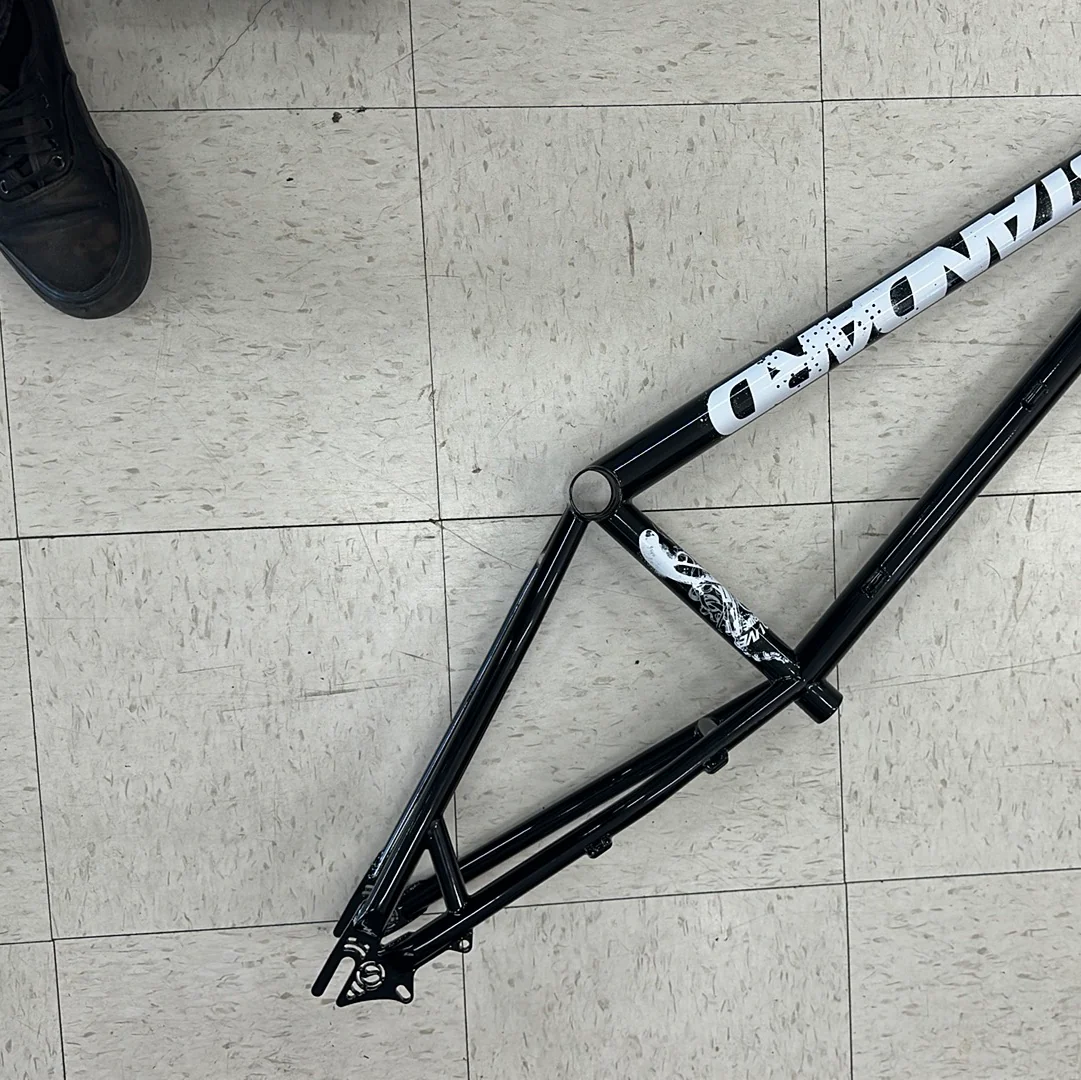

STANDARD BYKE OS20 125R FRAME - Image 11
STANDARD BYKE OS20 125R FRAME - Image 12

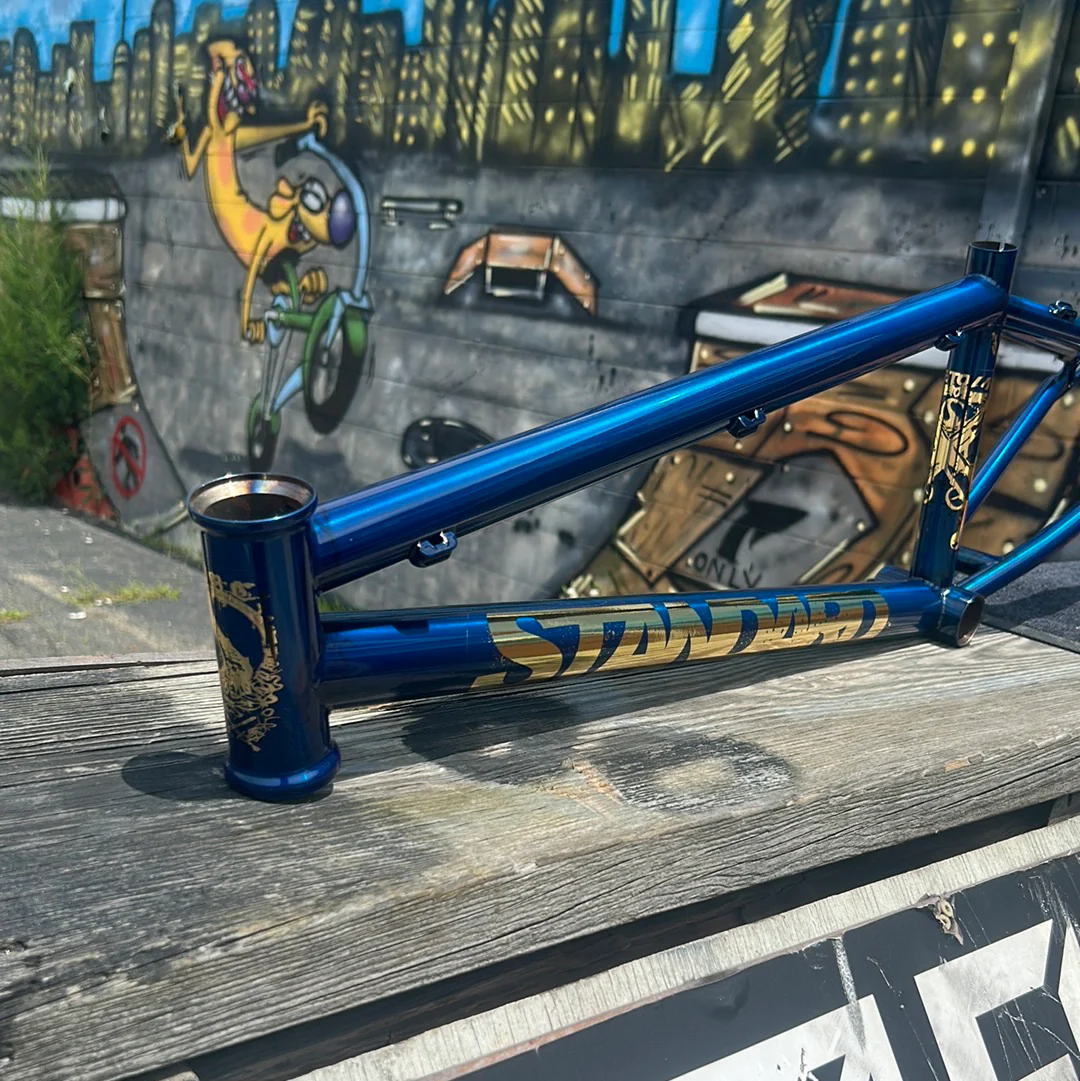

STANDARD BYKE OS20 125R FRAME - Image 13

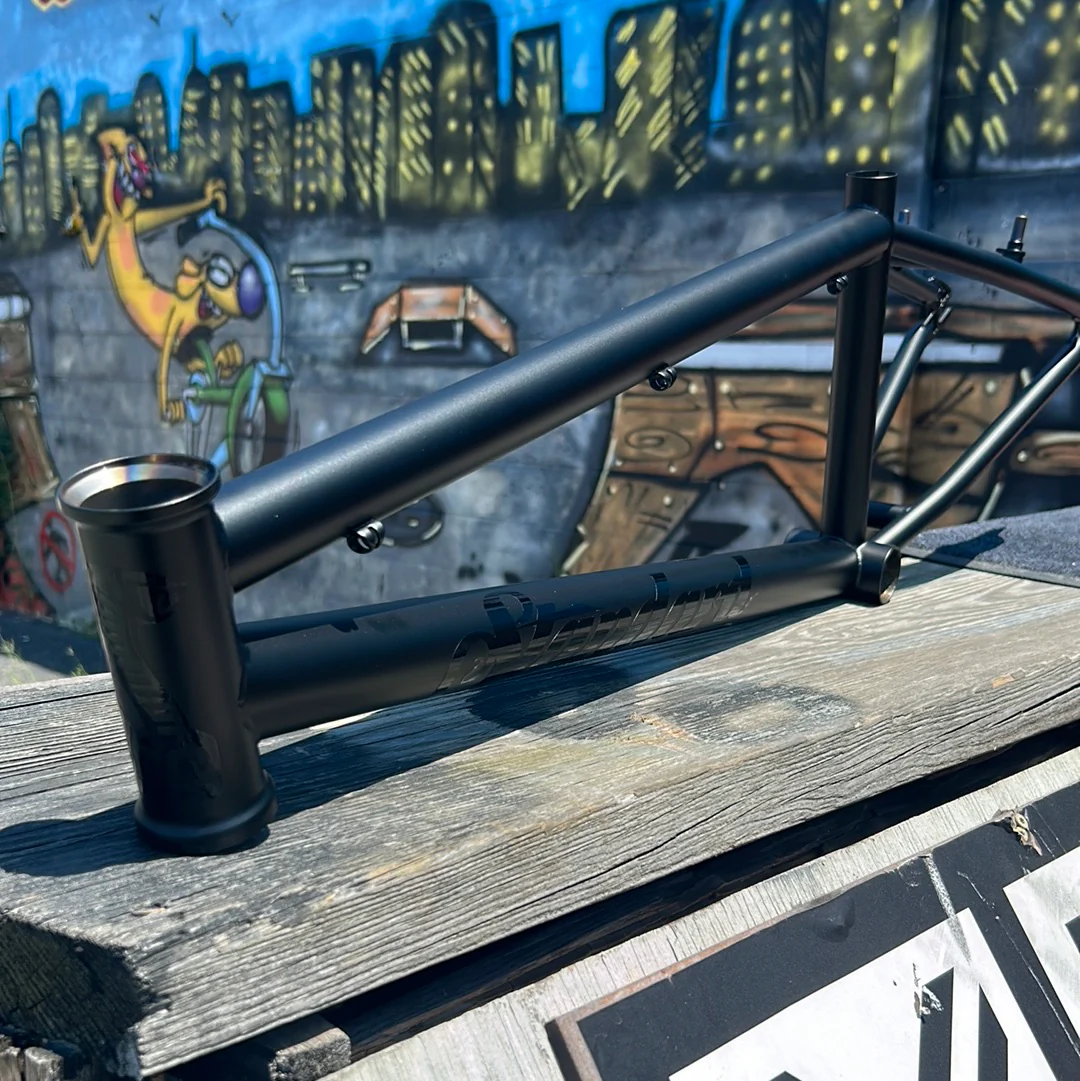

STANDARD BYKE OS20 125R FRAME - Image 14

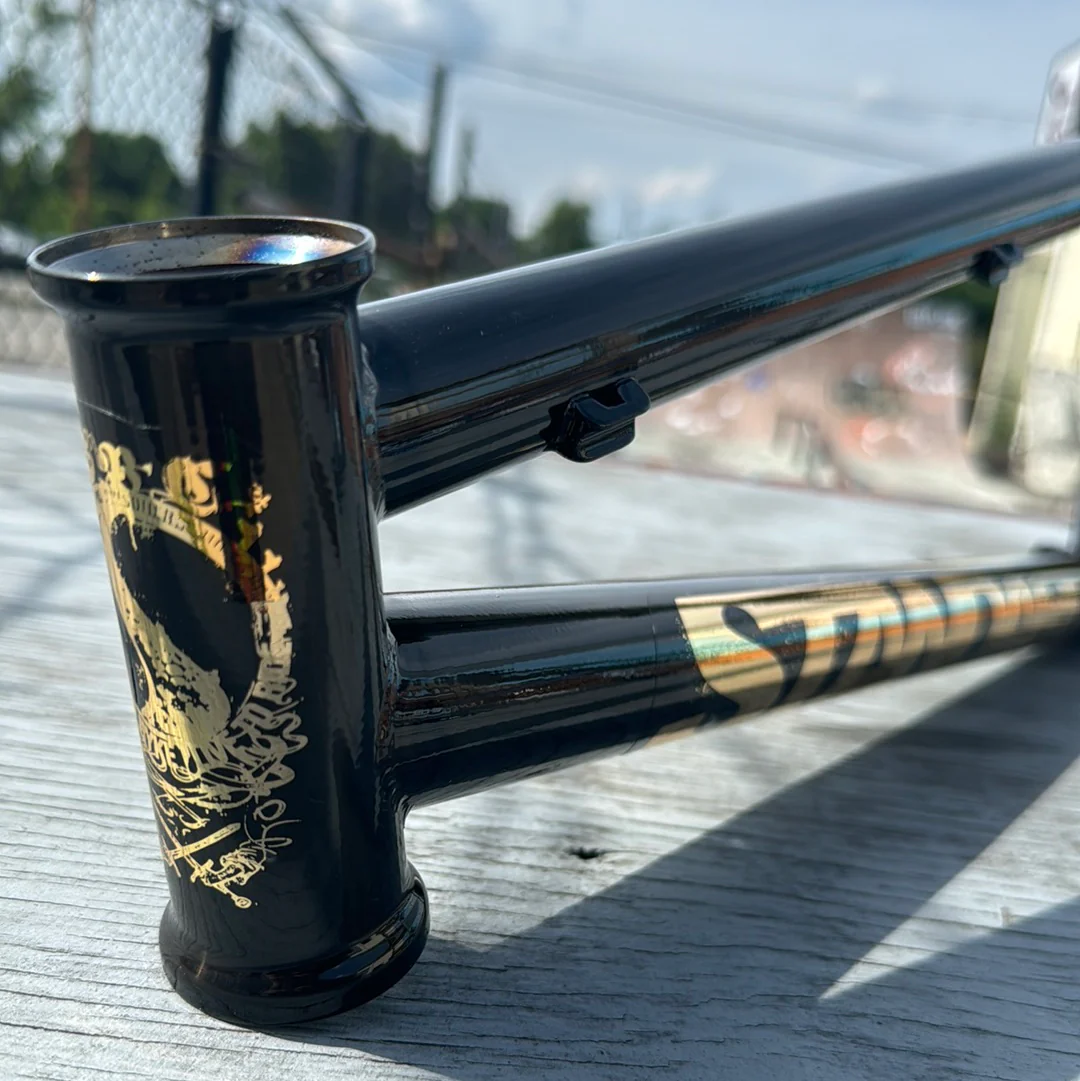

STANDARD BYKE OS20 125R FRAME - Image 15
STANDARD BYKE OS20 125R FRAME - Image 16
STANDARD BYKE OS20 125R FRAME - Image 17

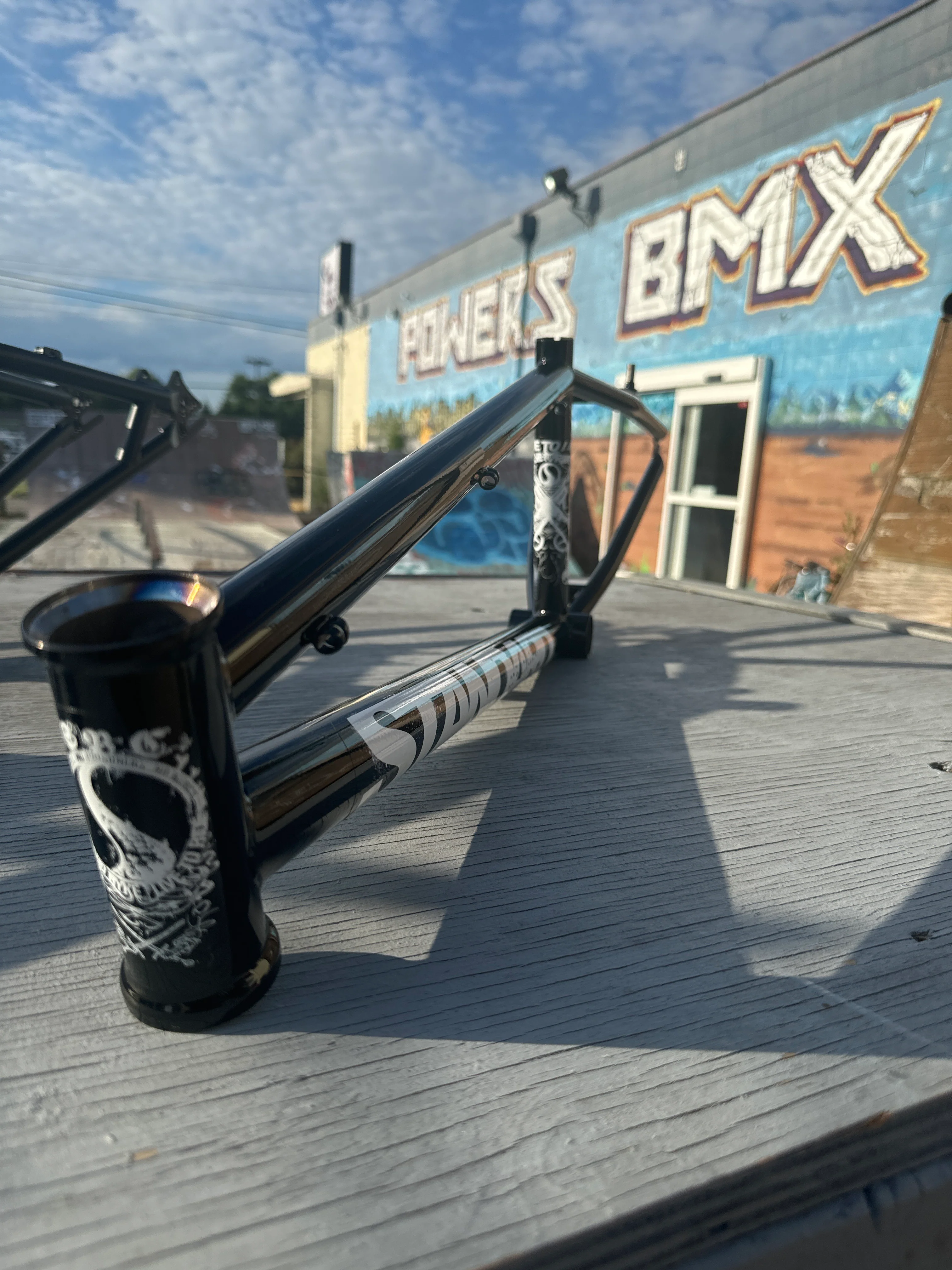

STANDARD BYKE OS20 125R FRAME - Image 18
