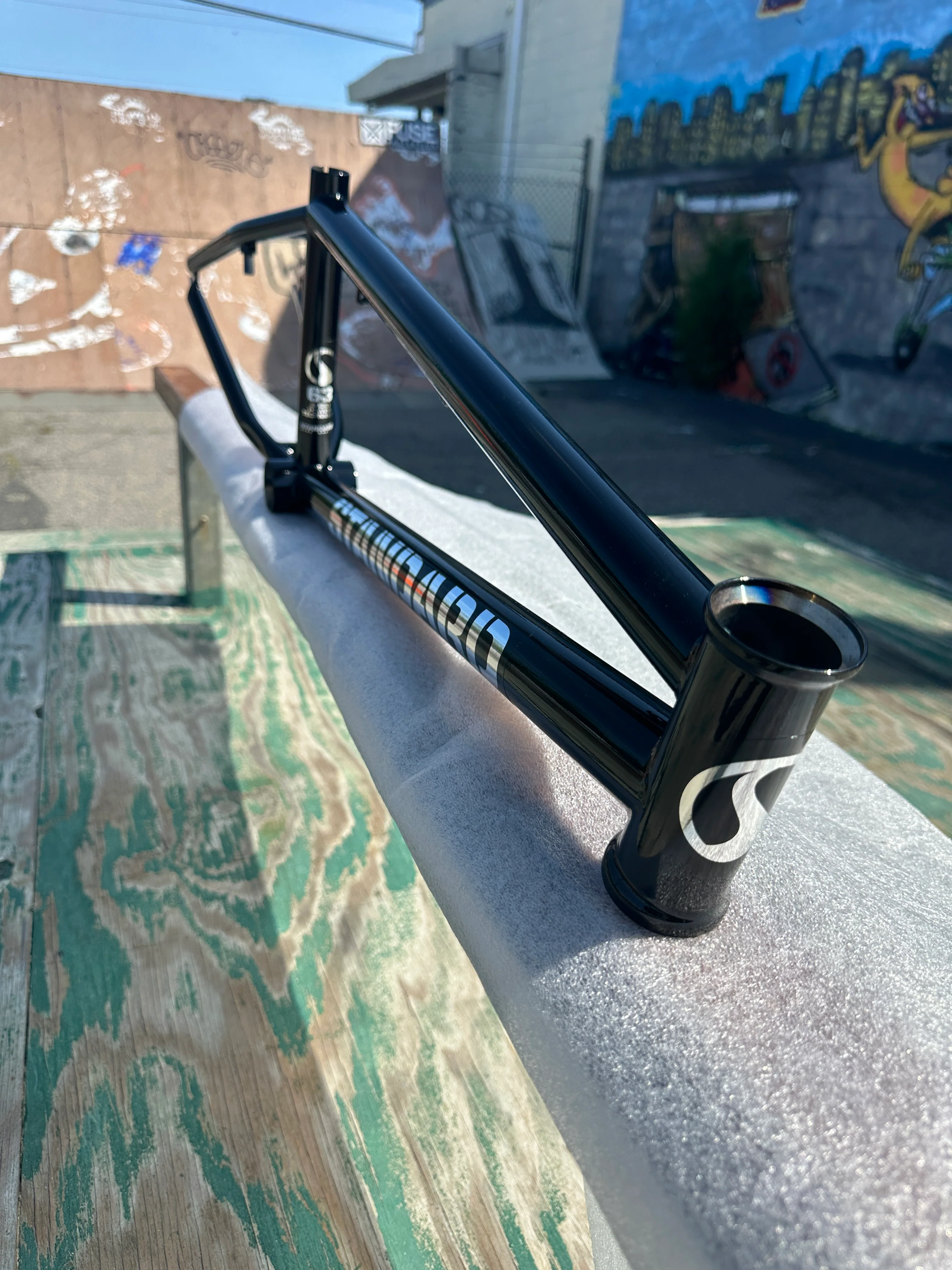

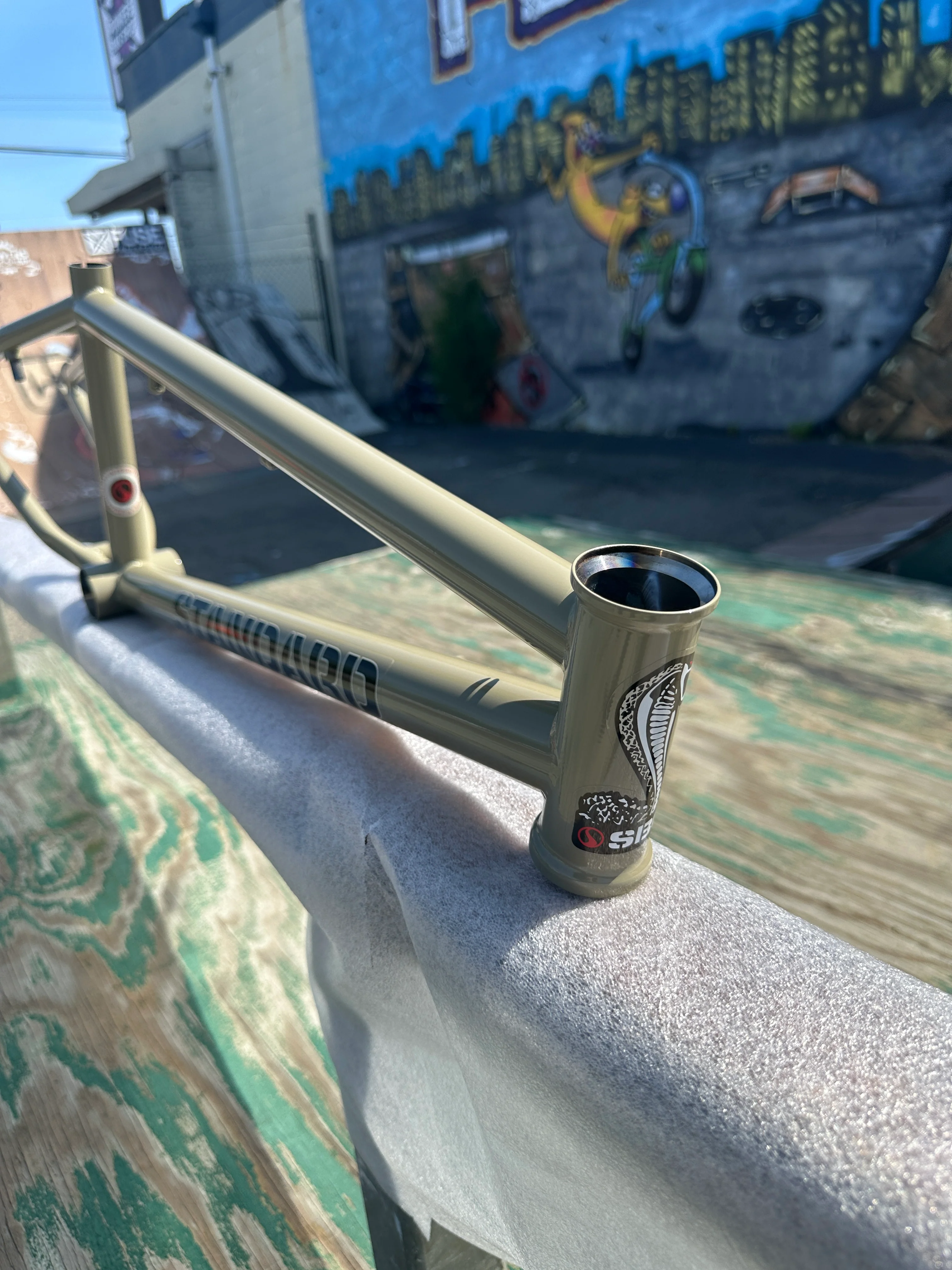

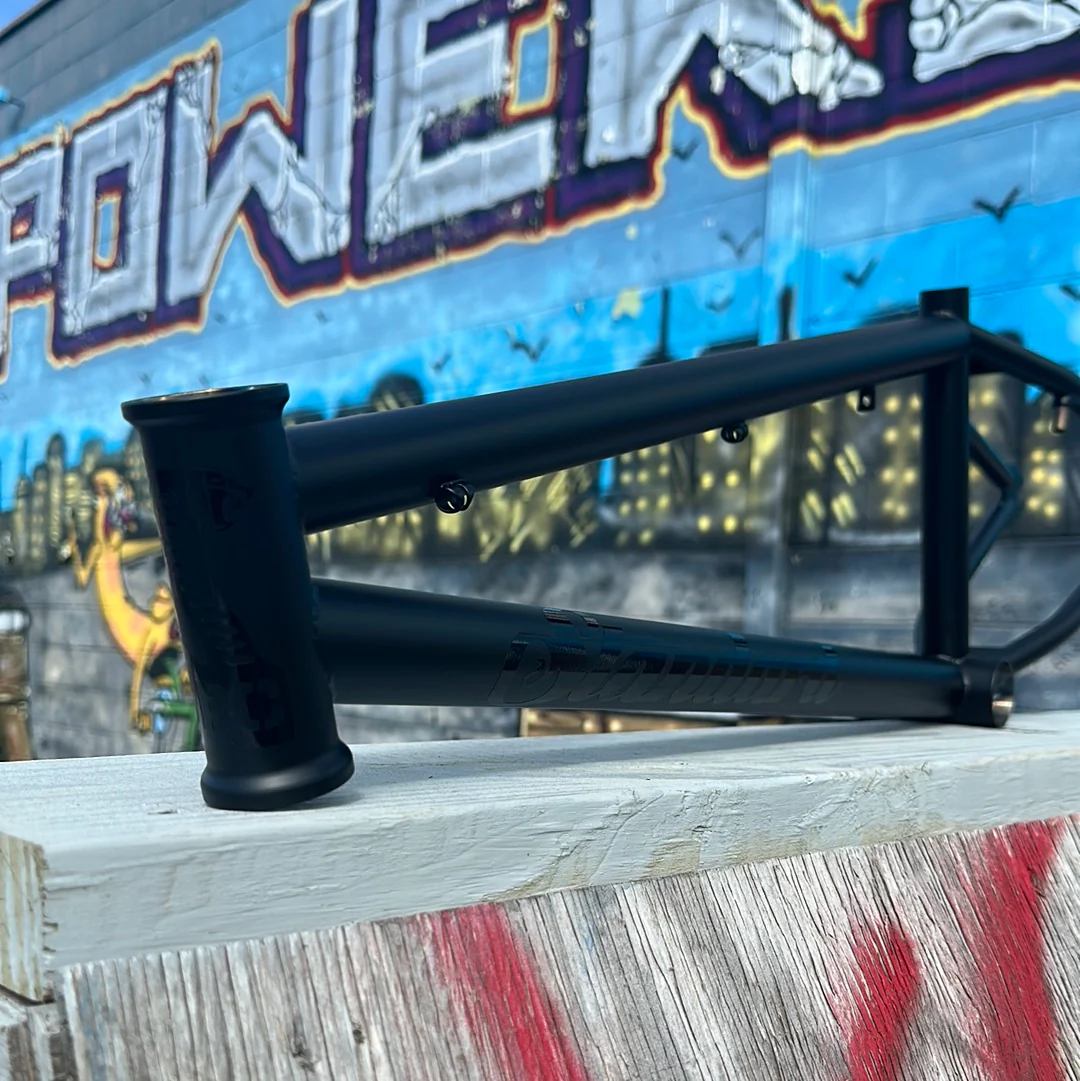

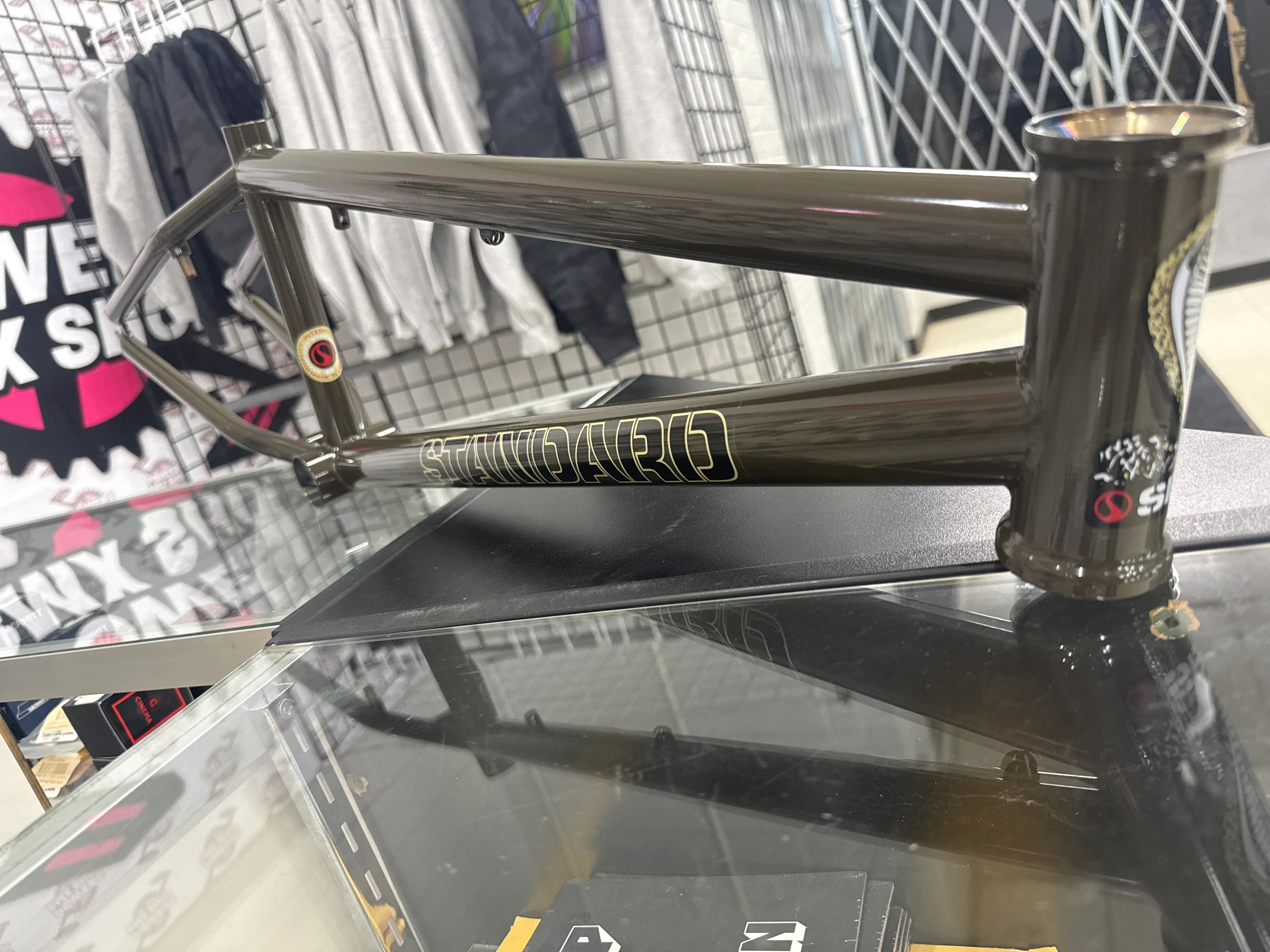

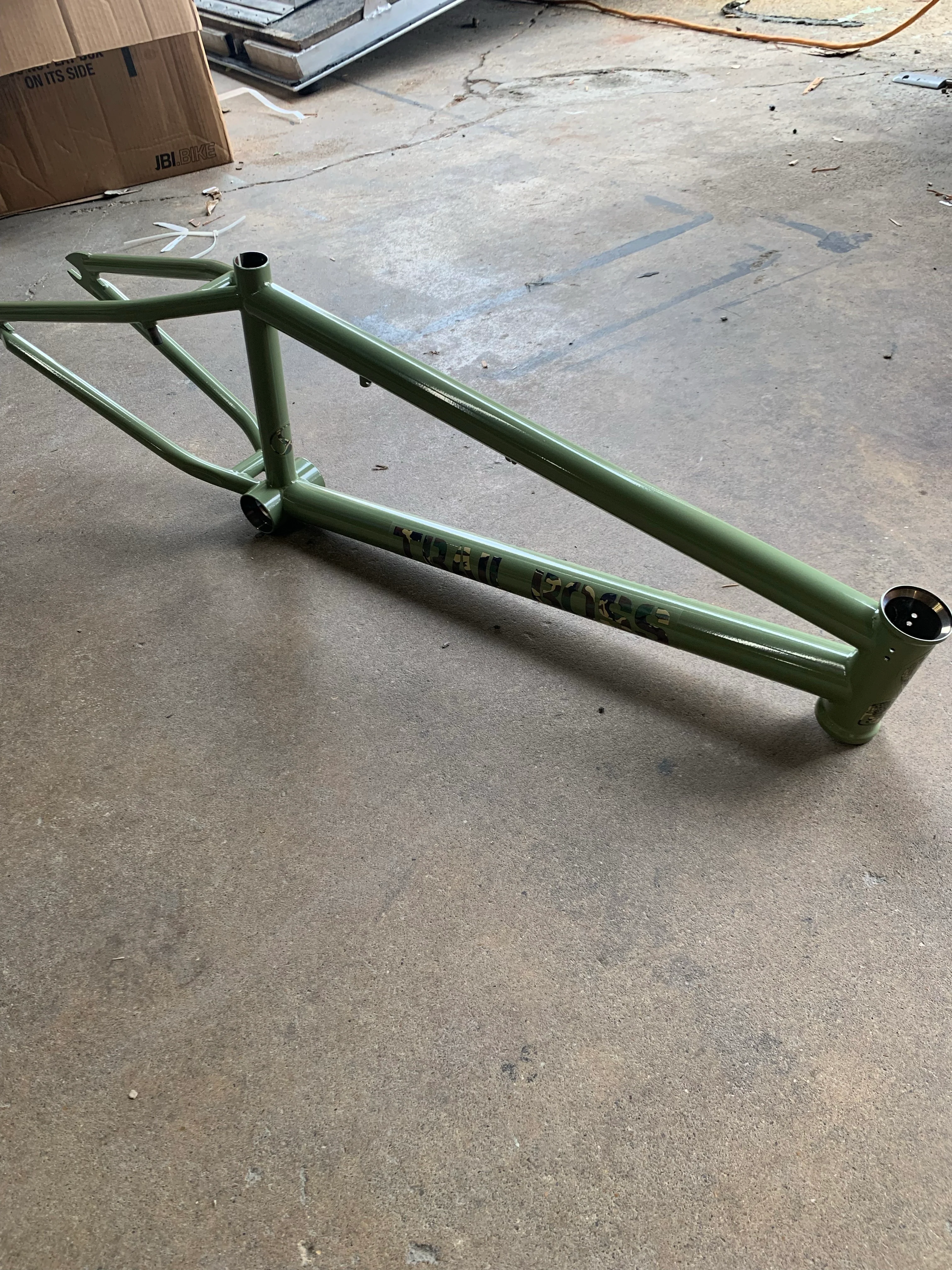

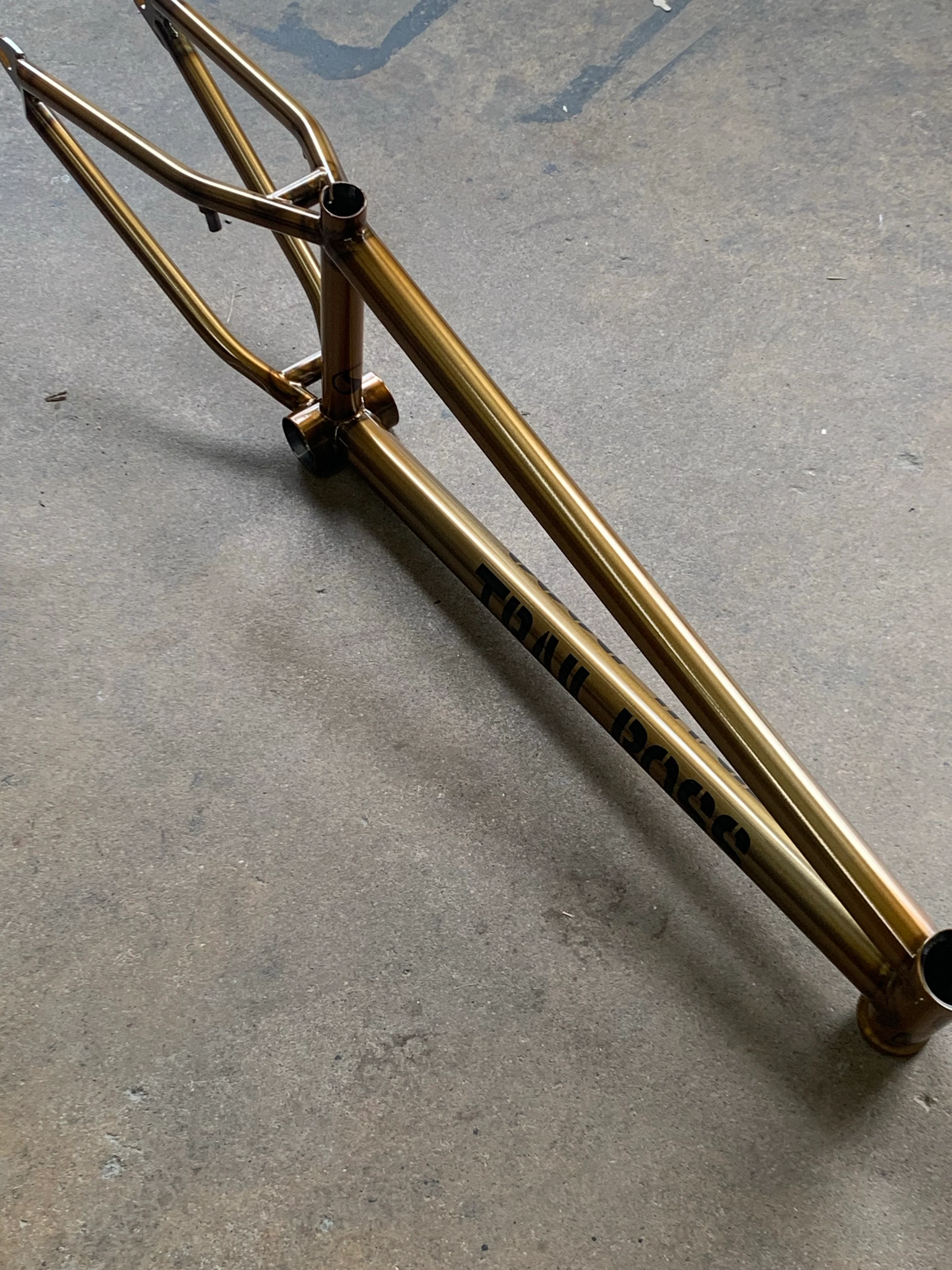

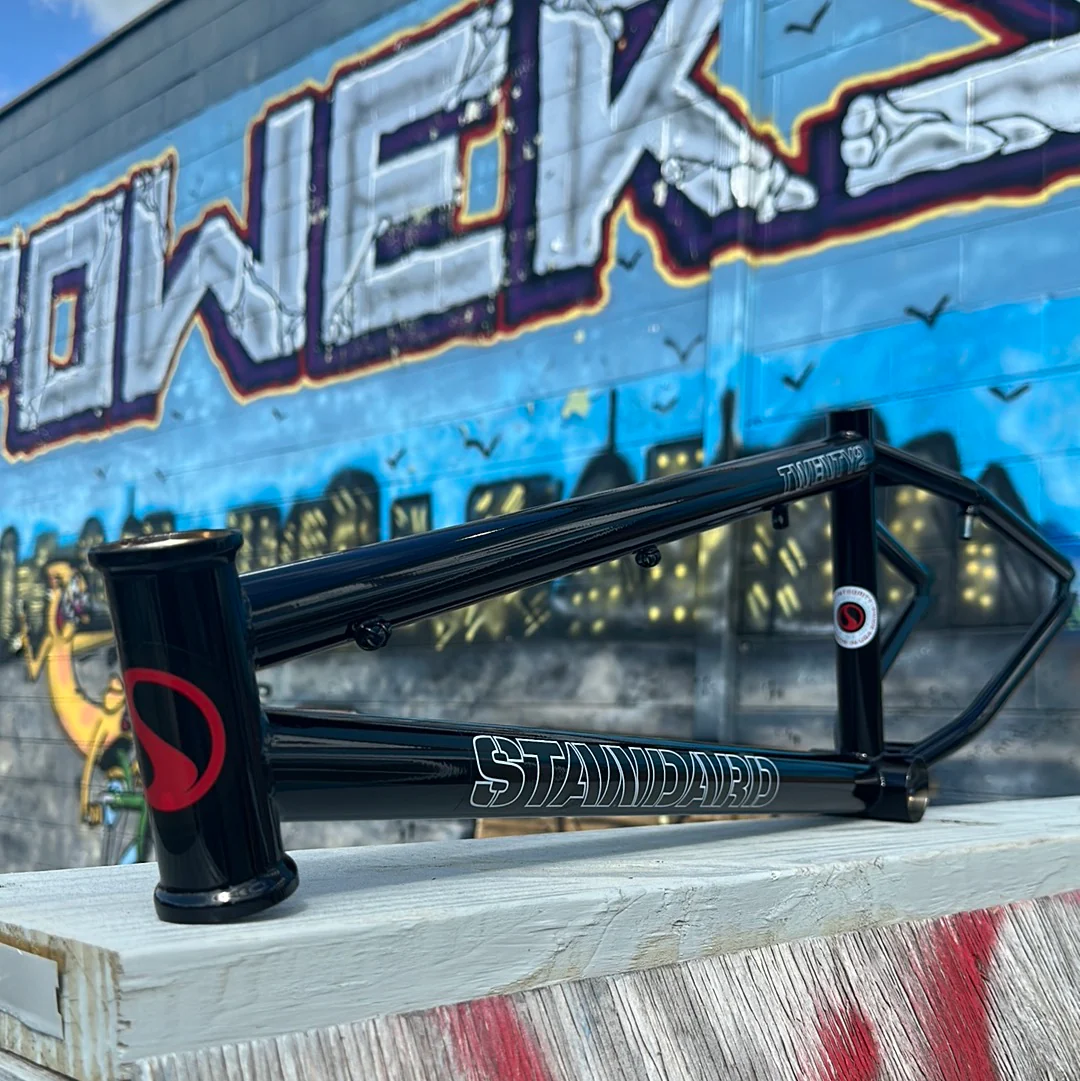

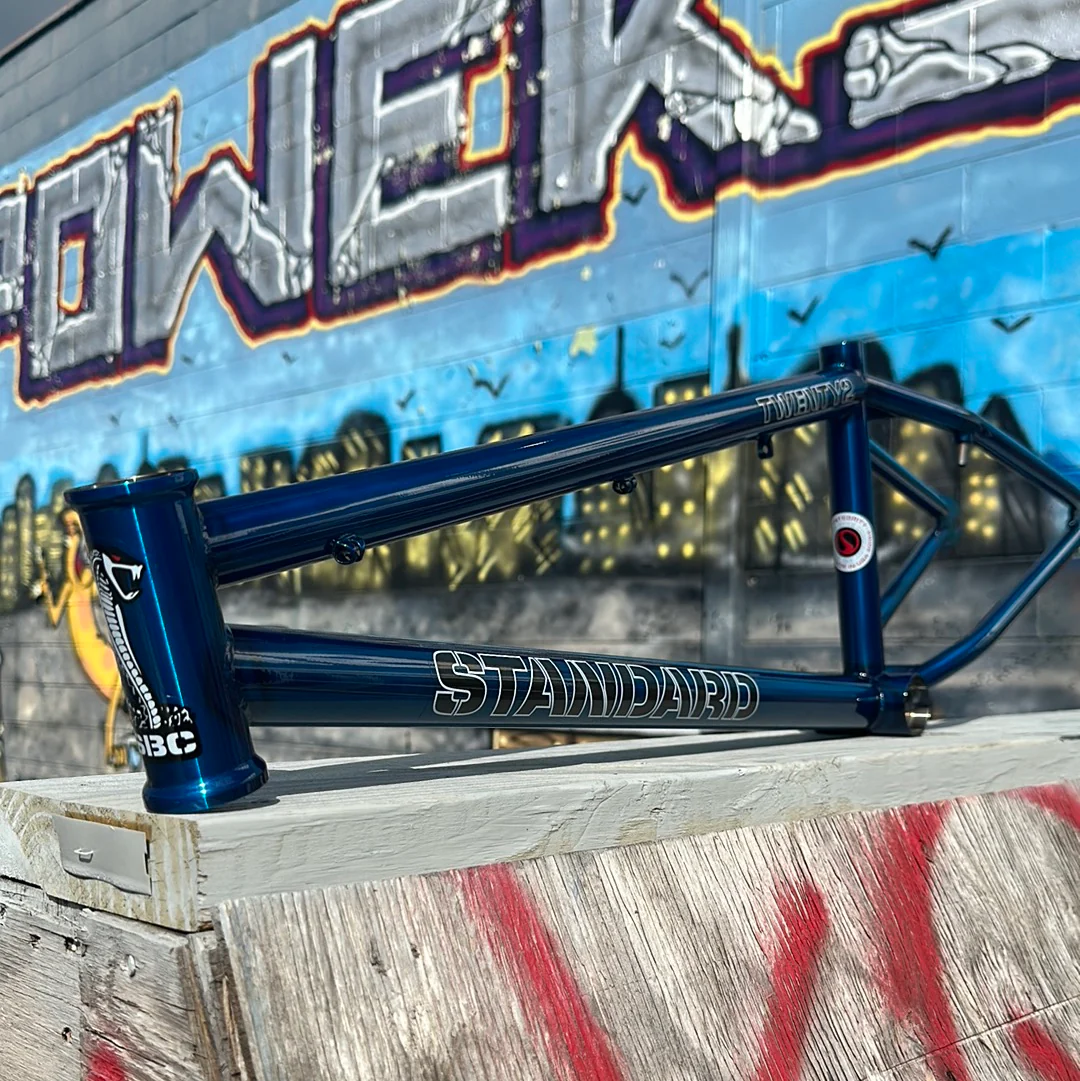

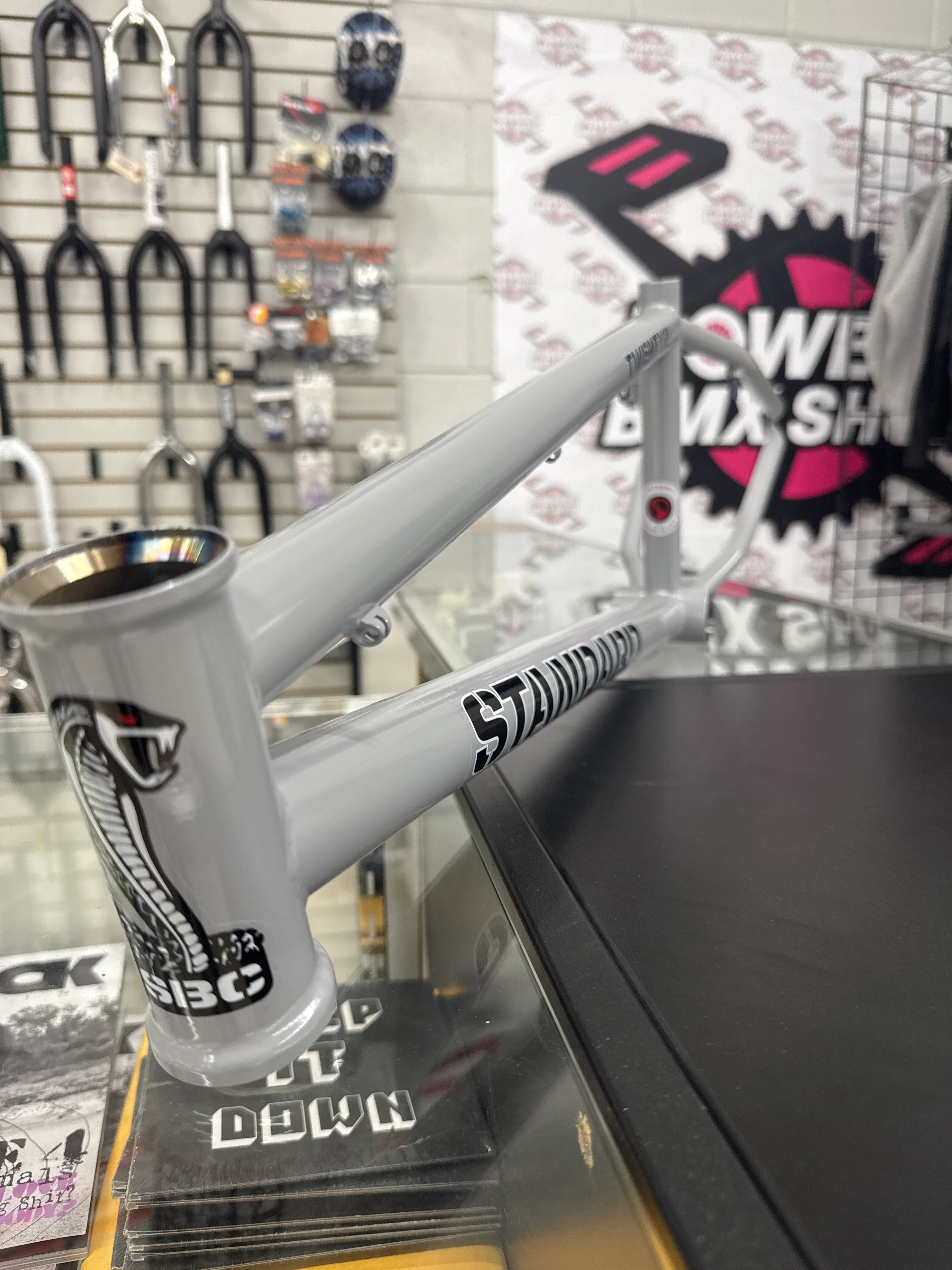

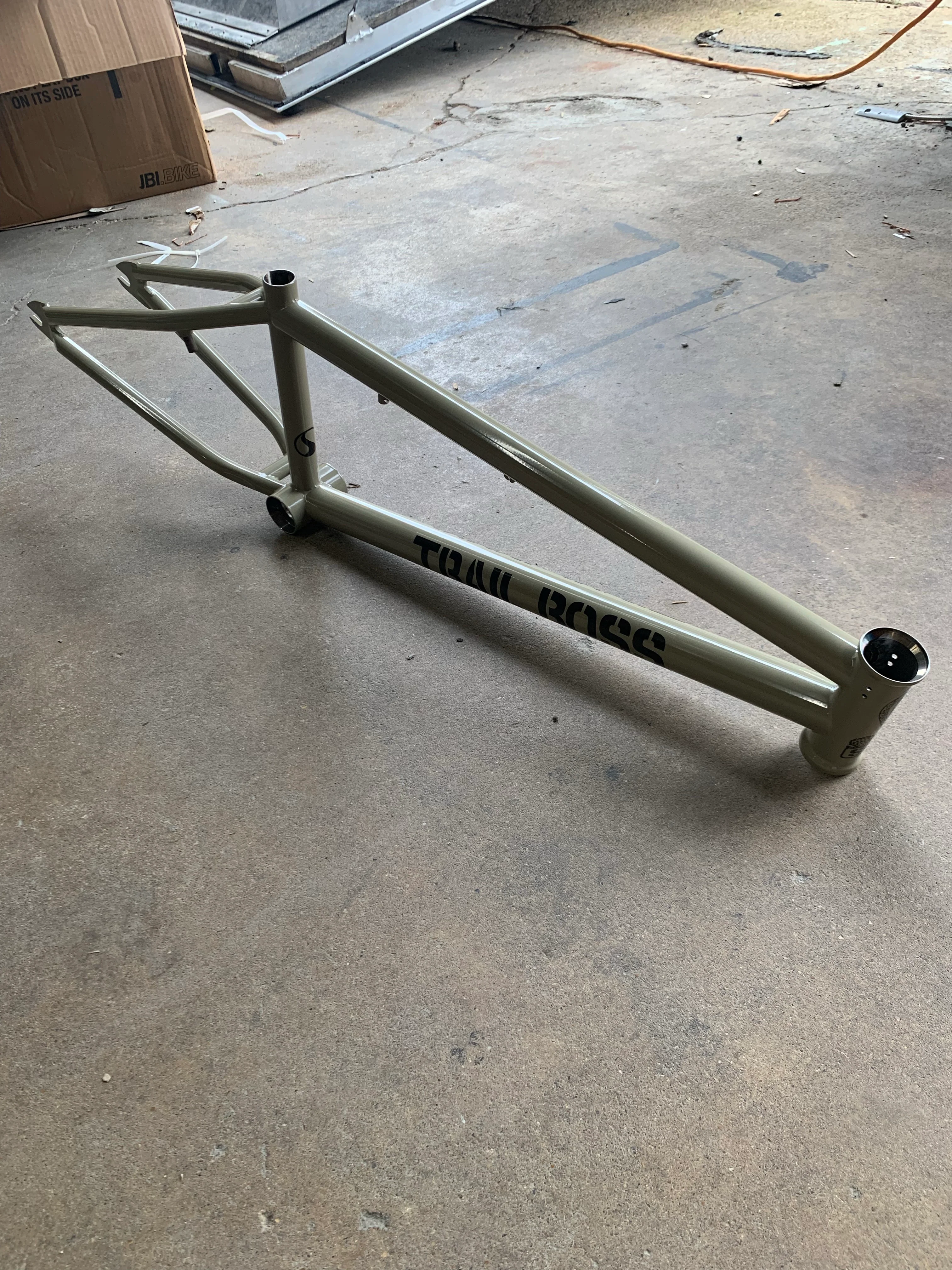

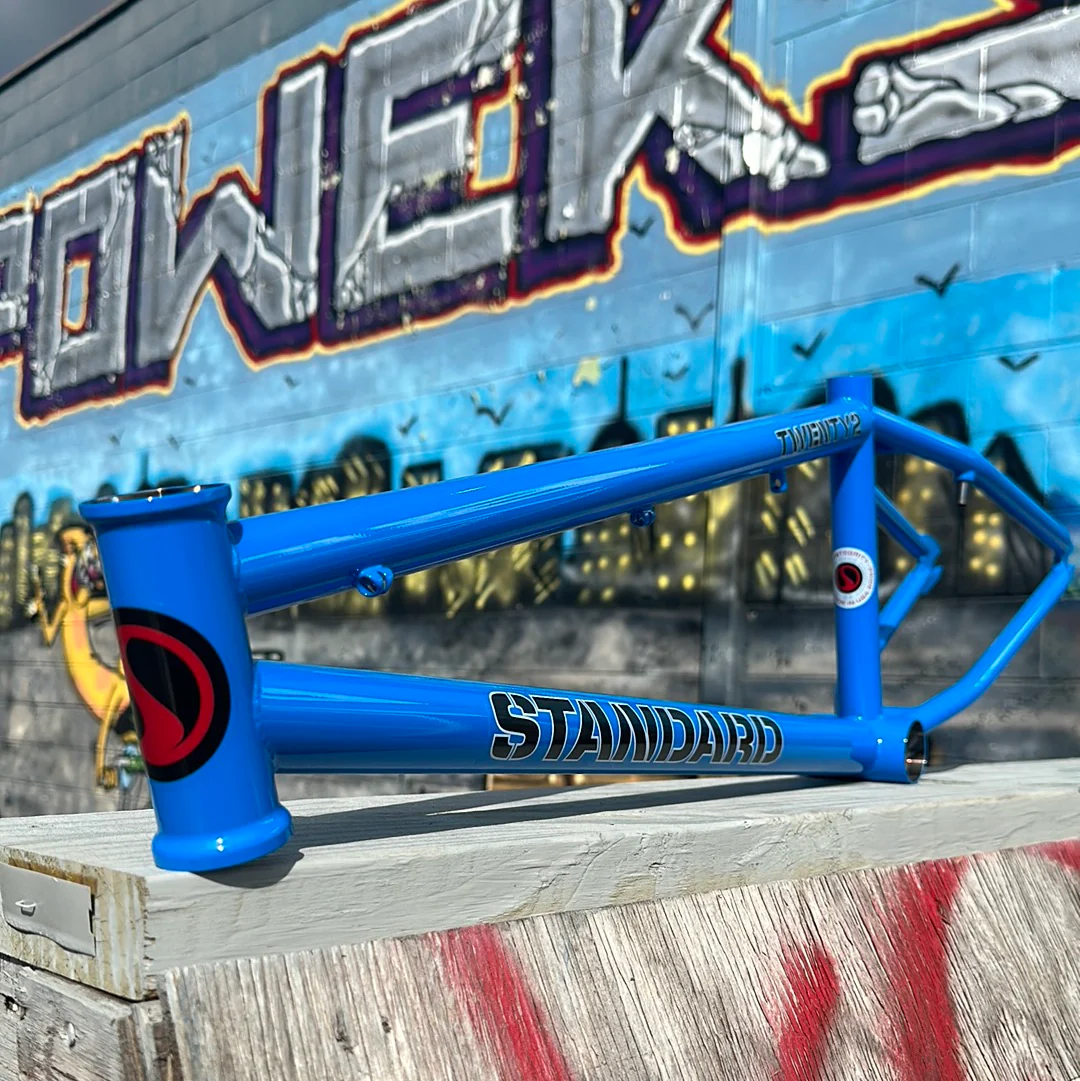

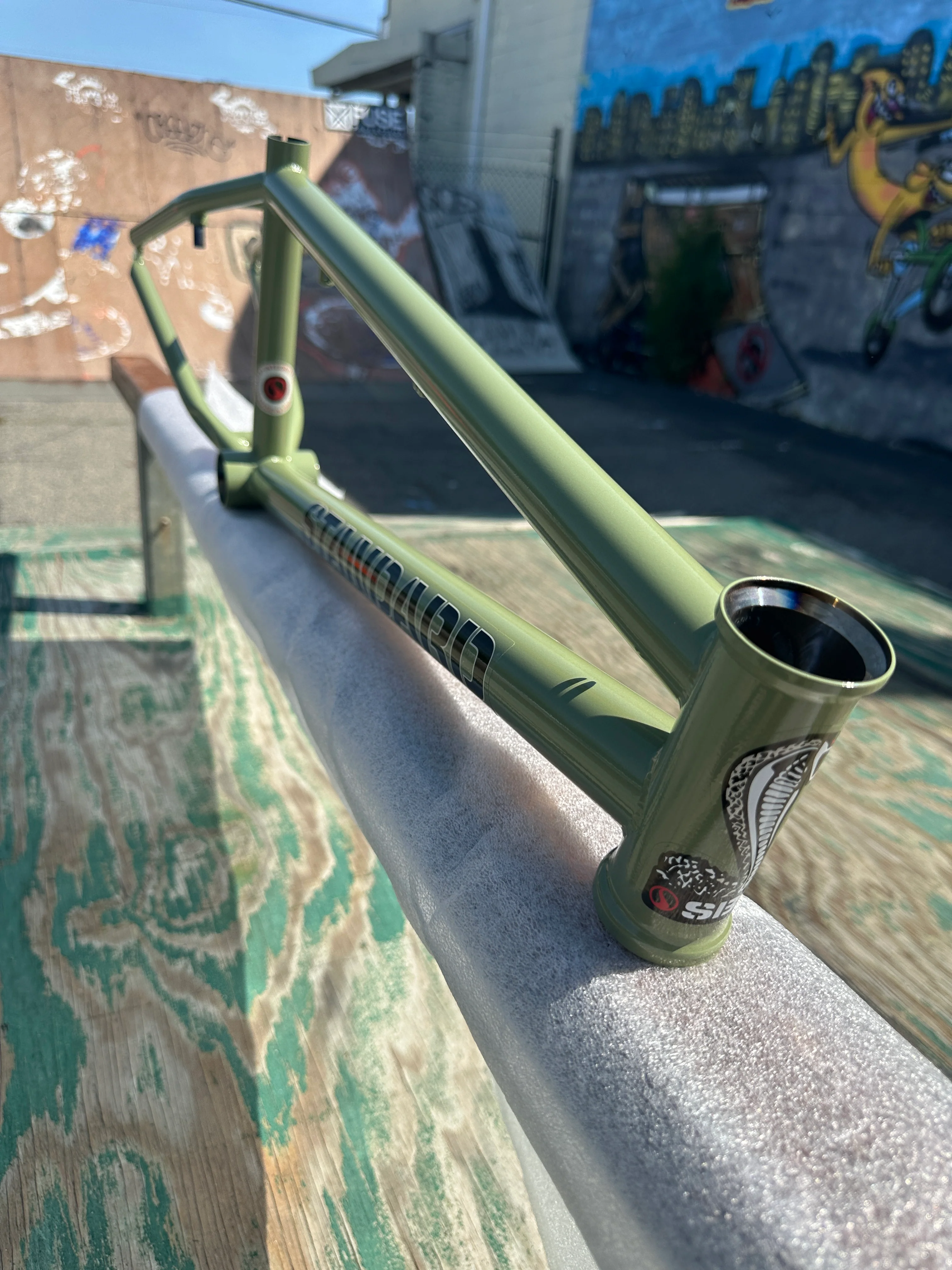

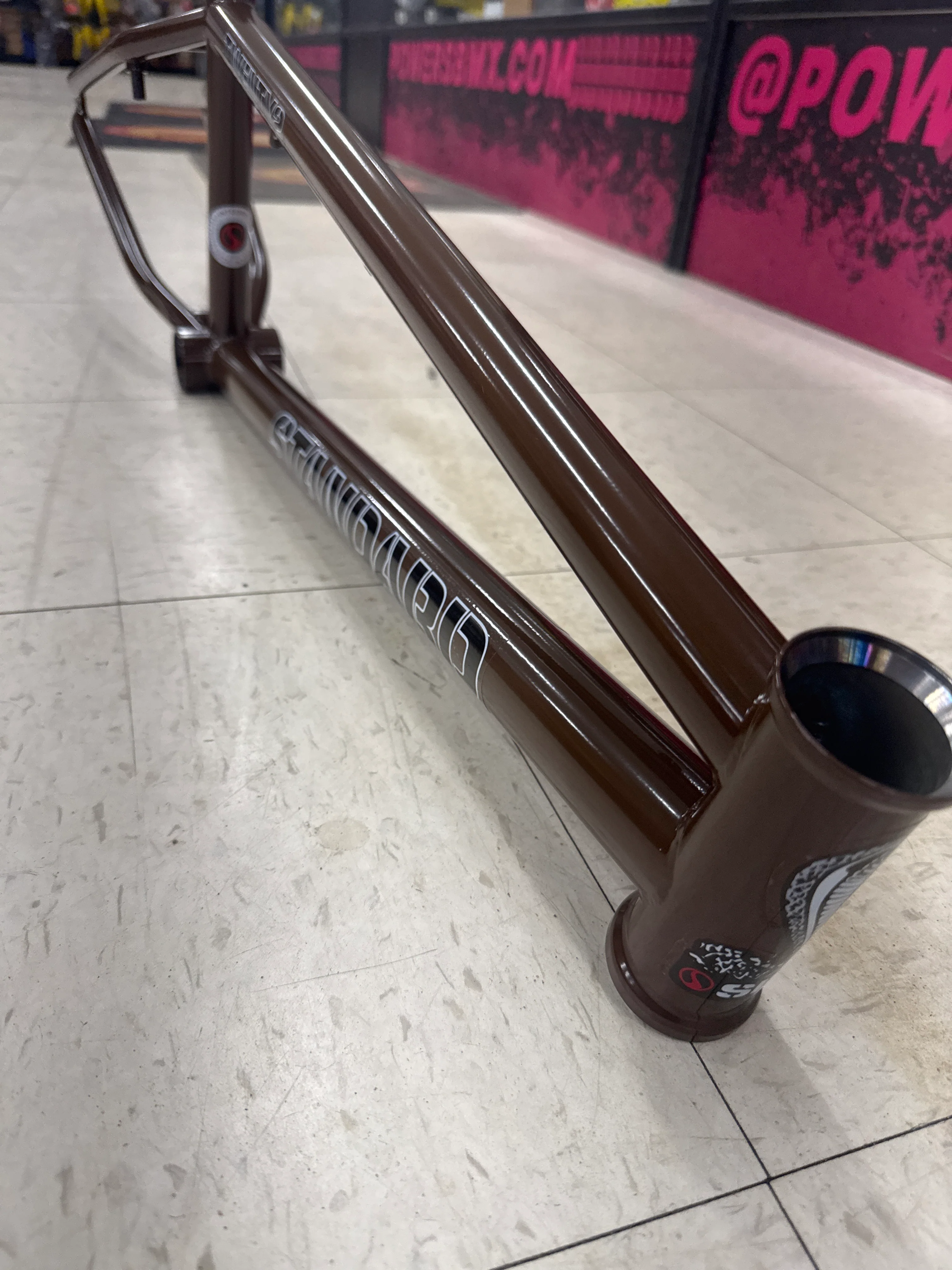

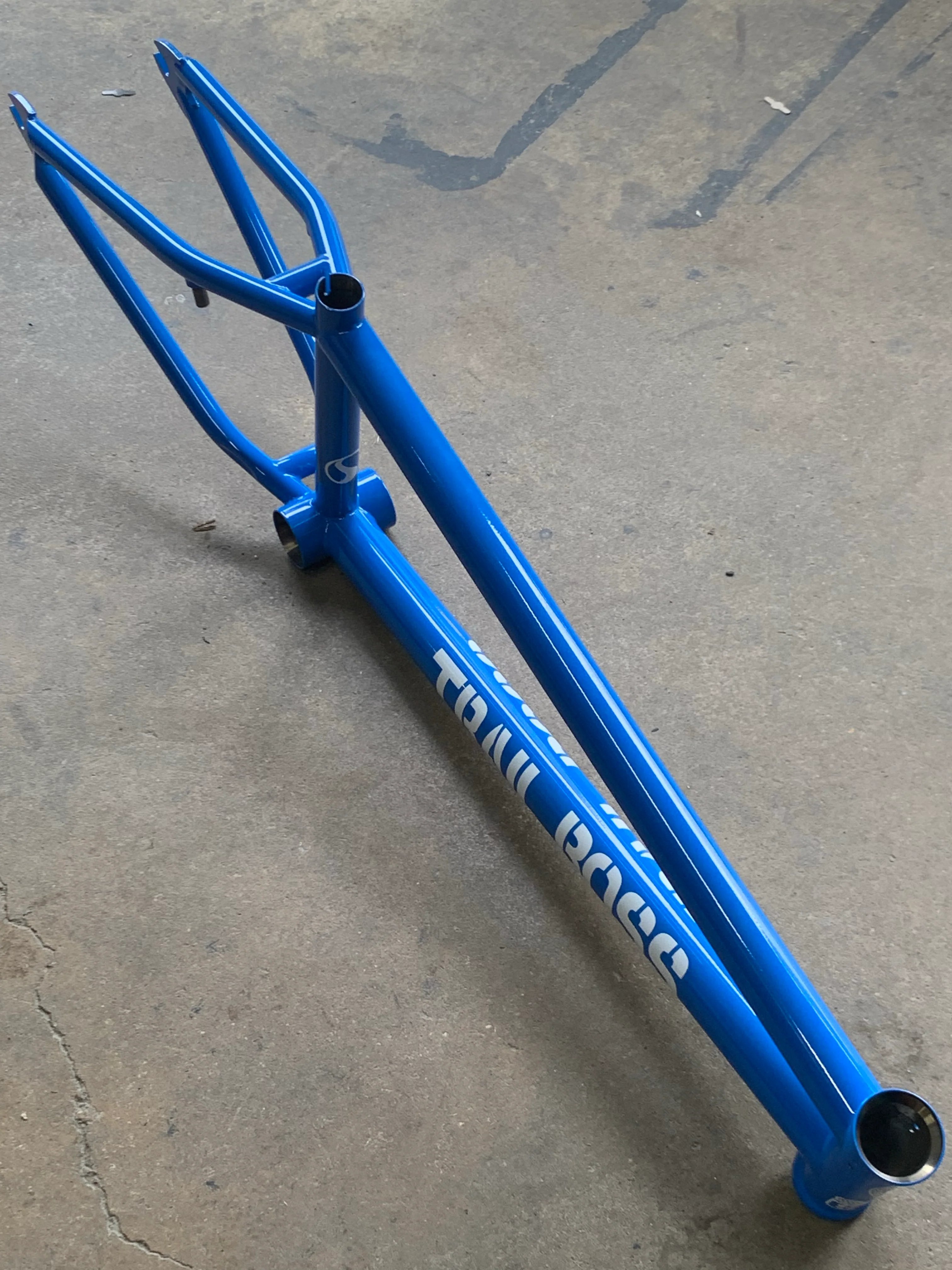

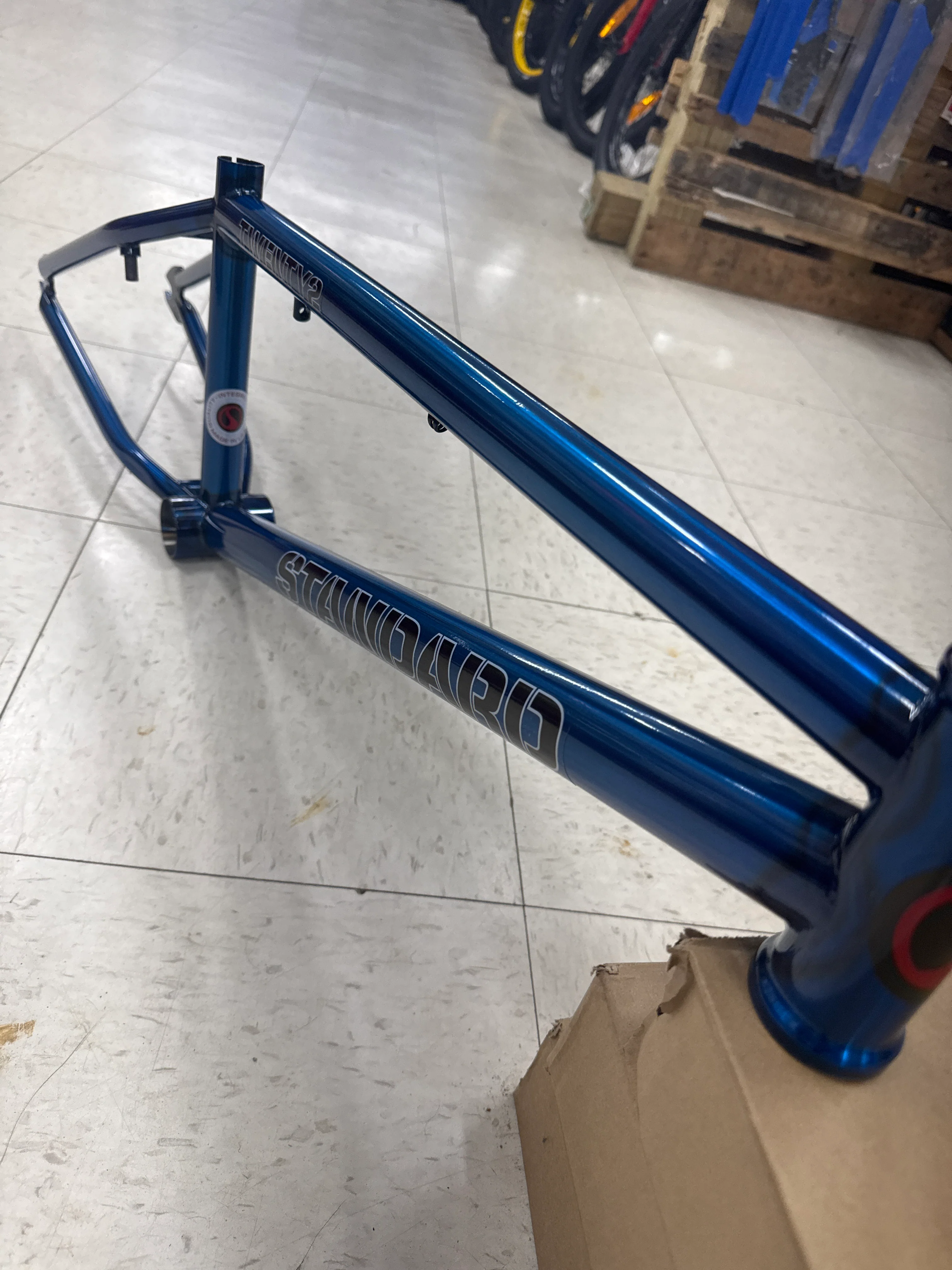

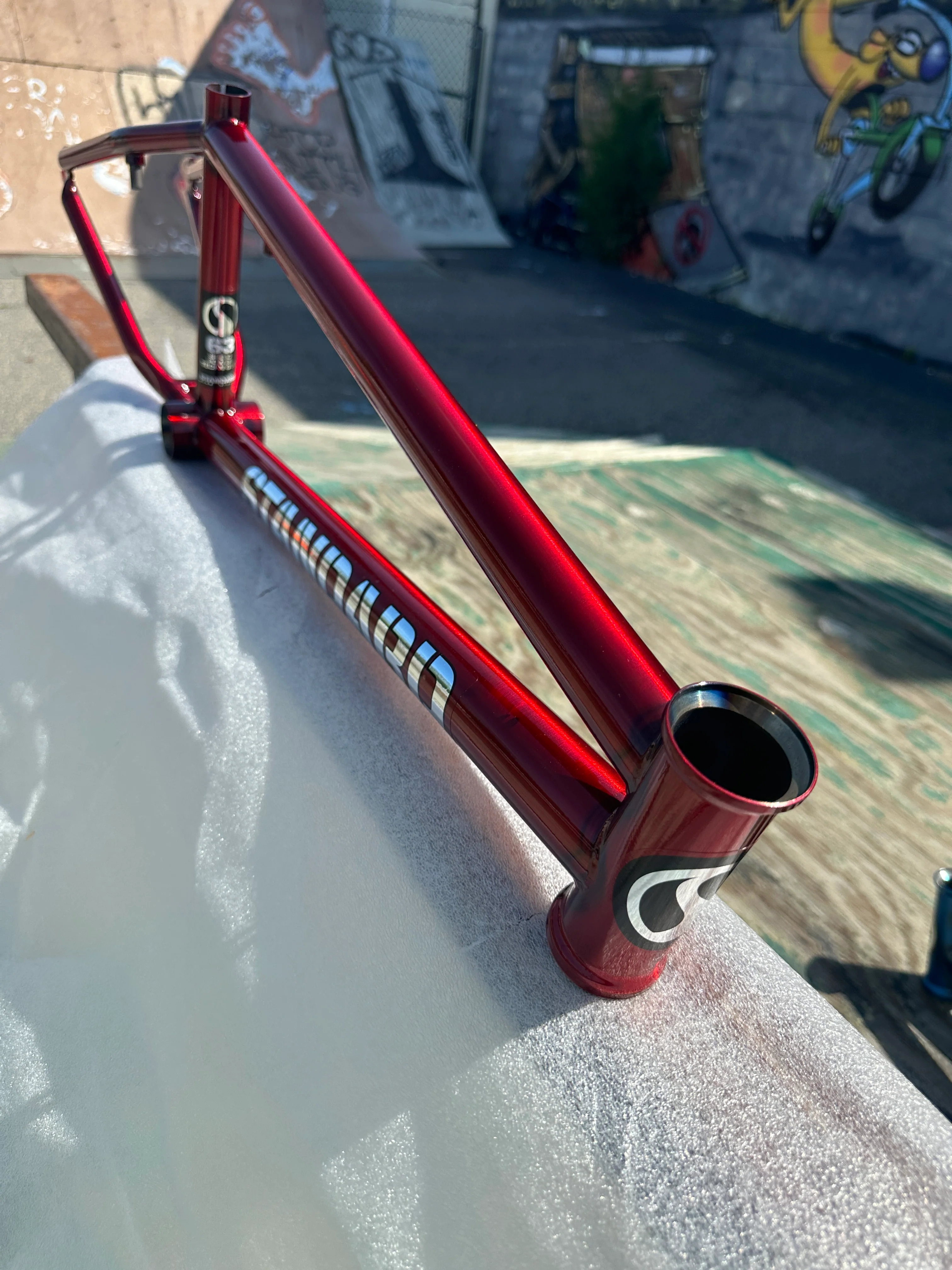

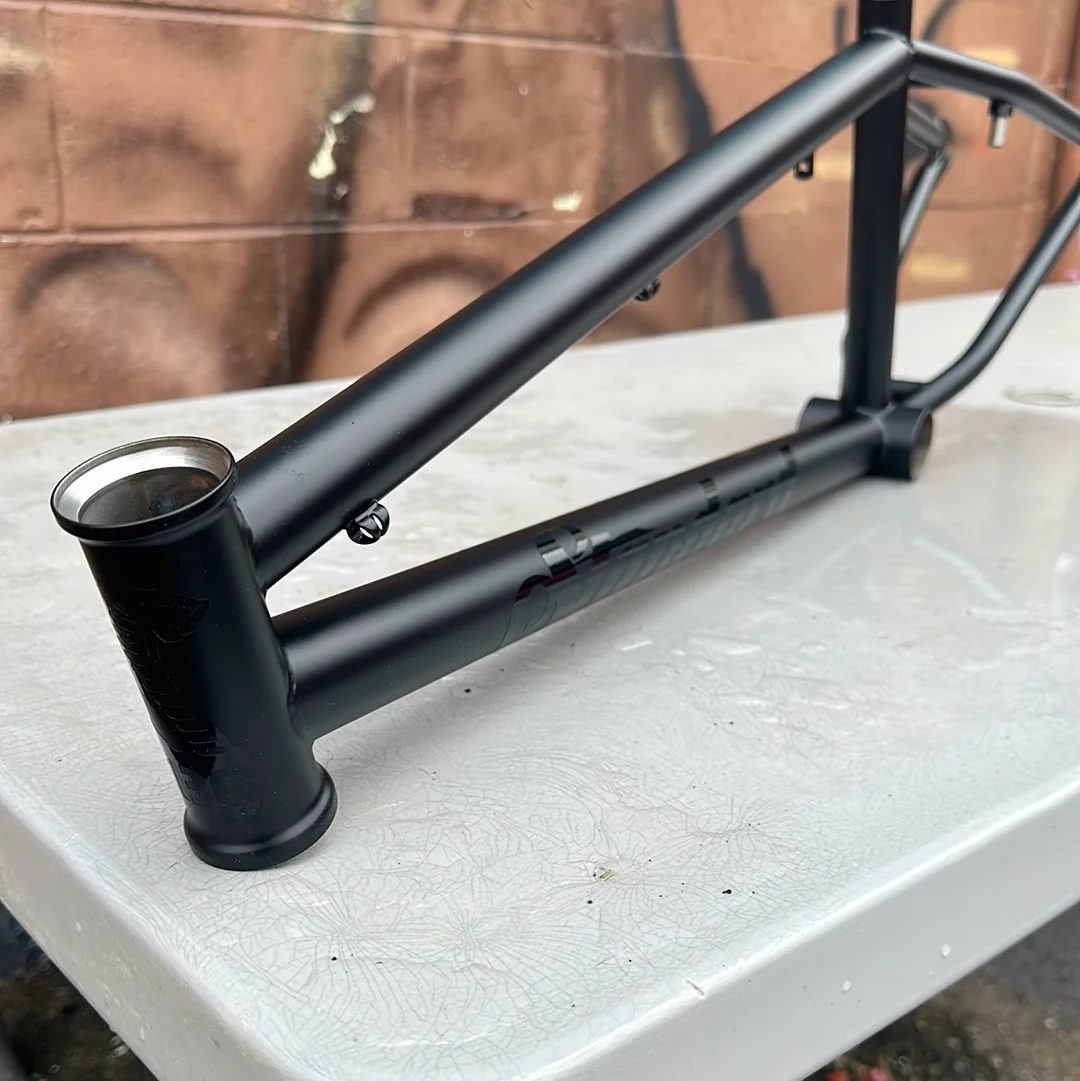

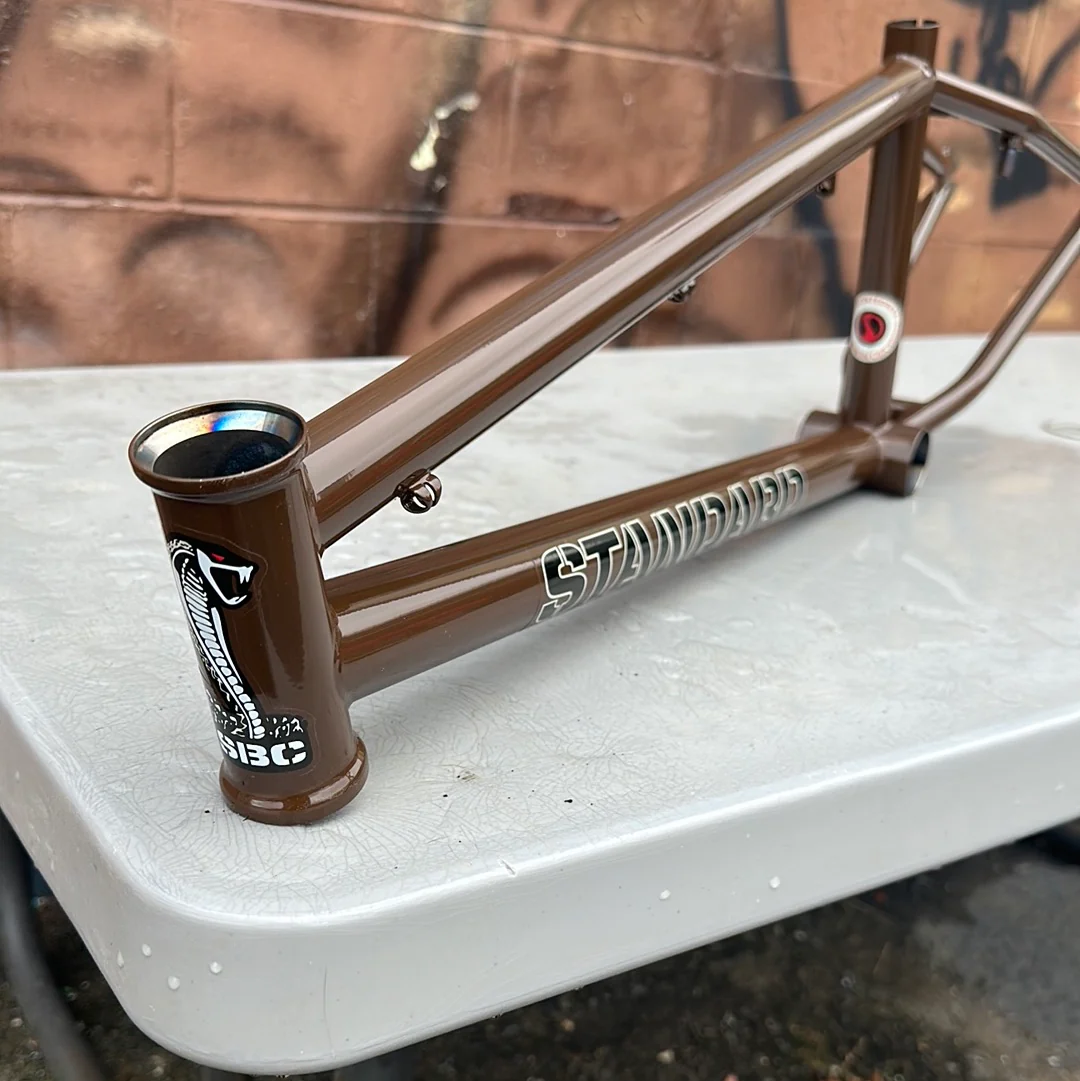

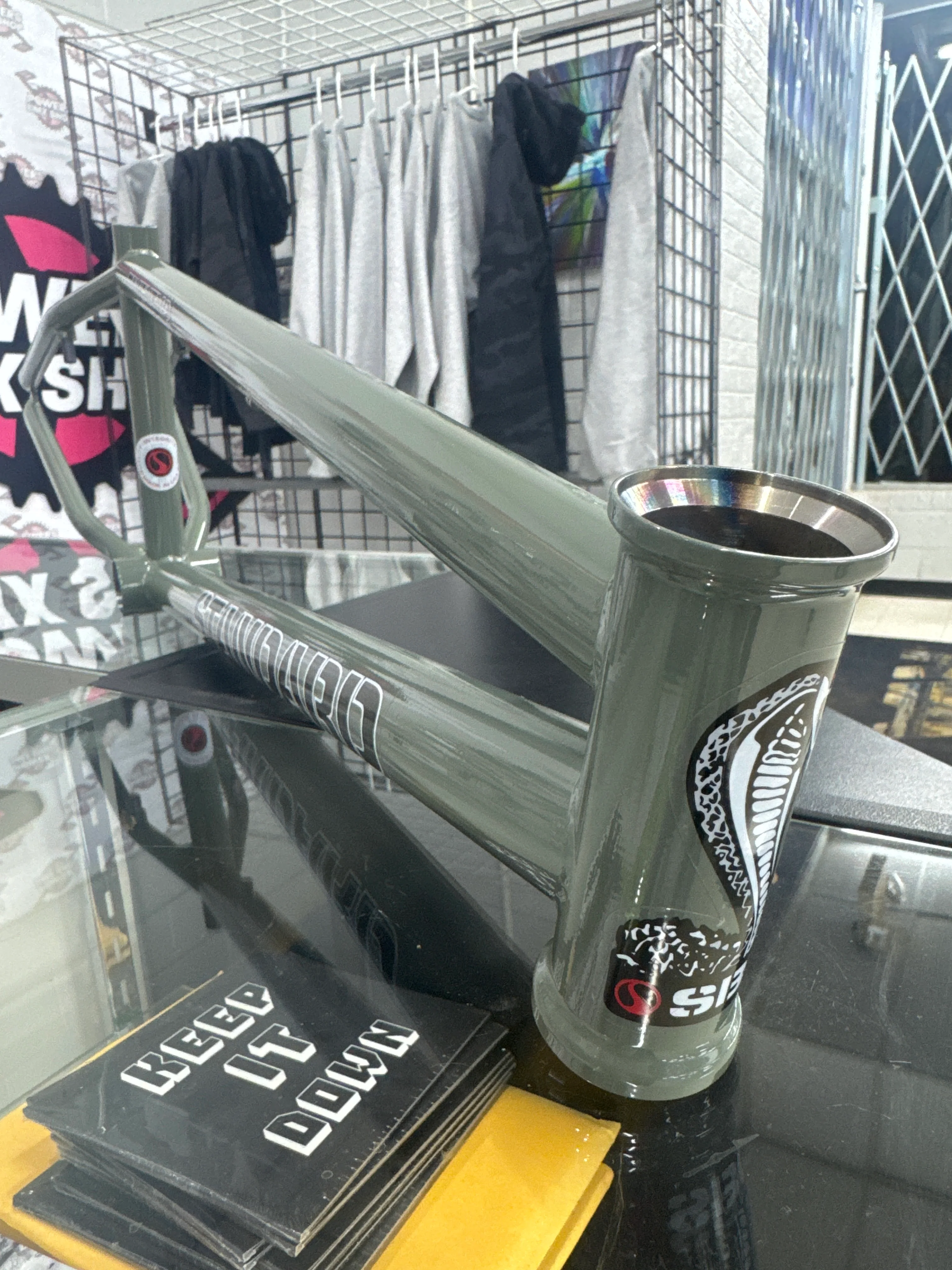

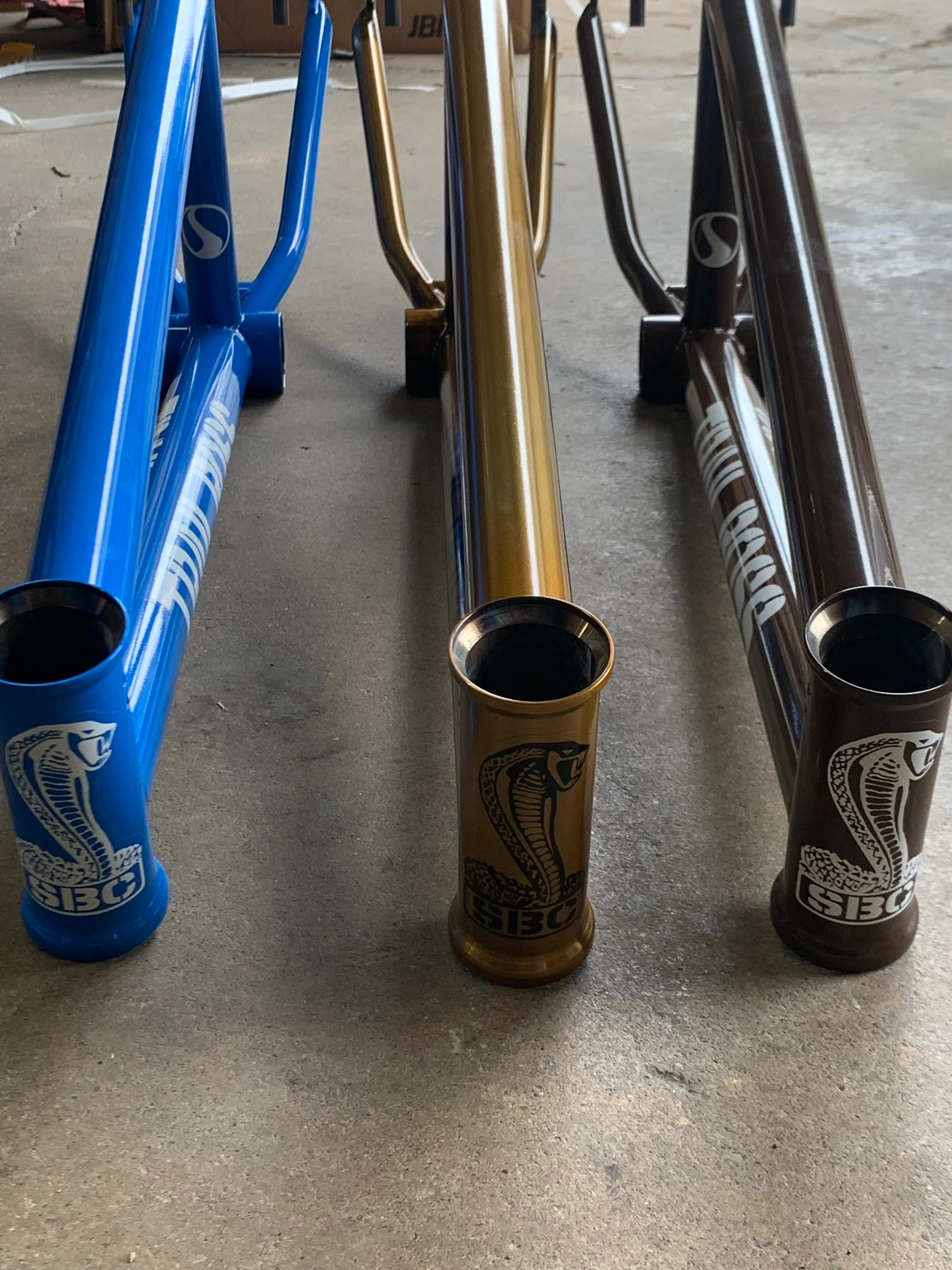

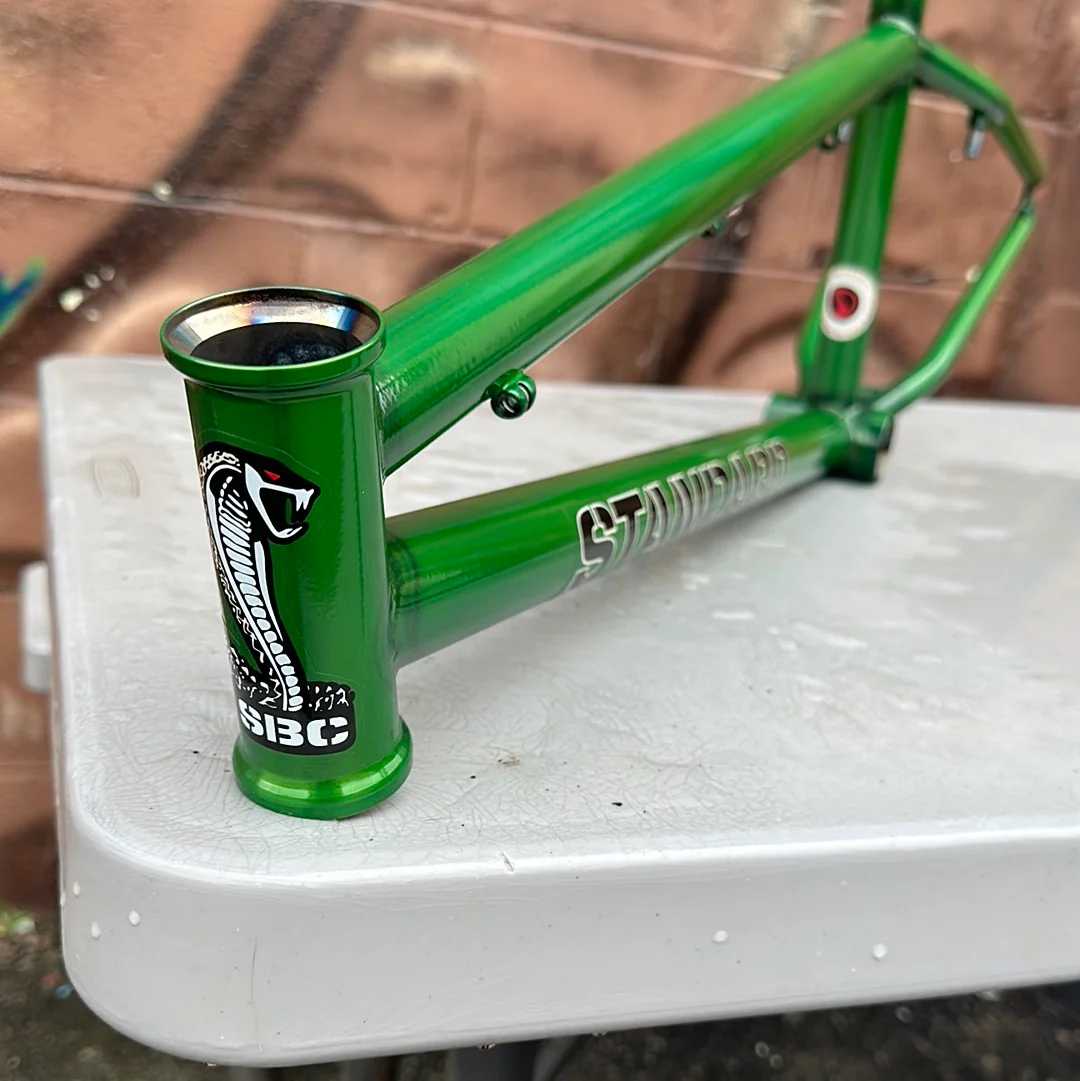

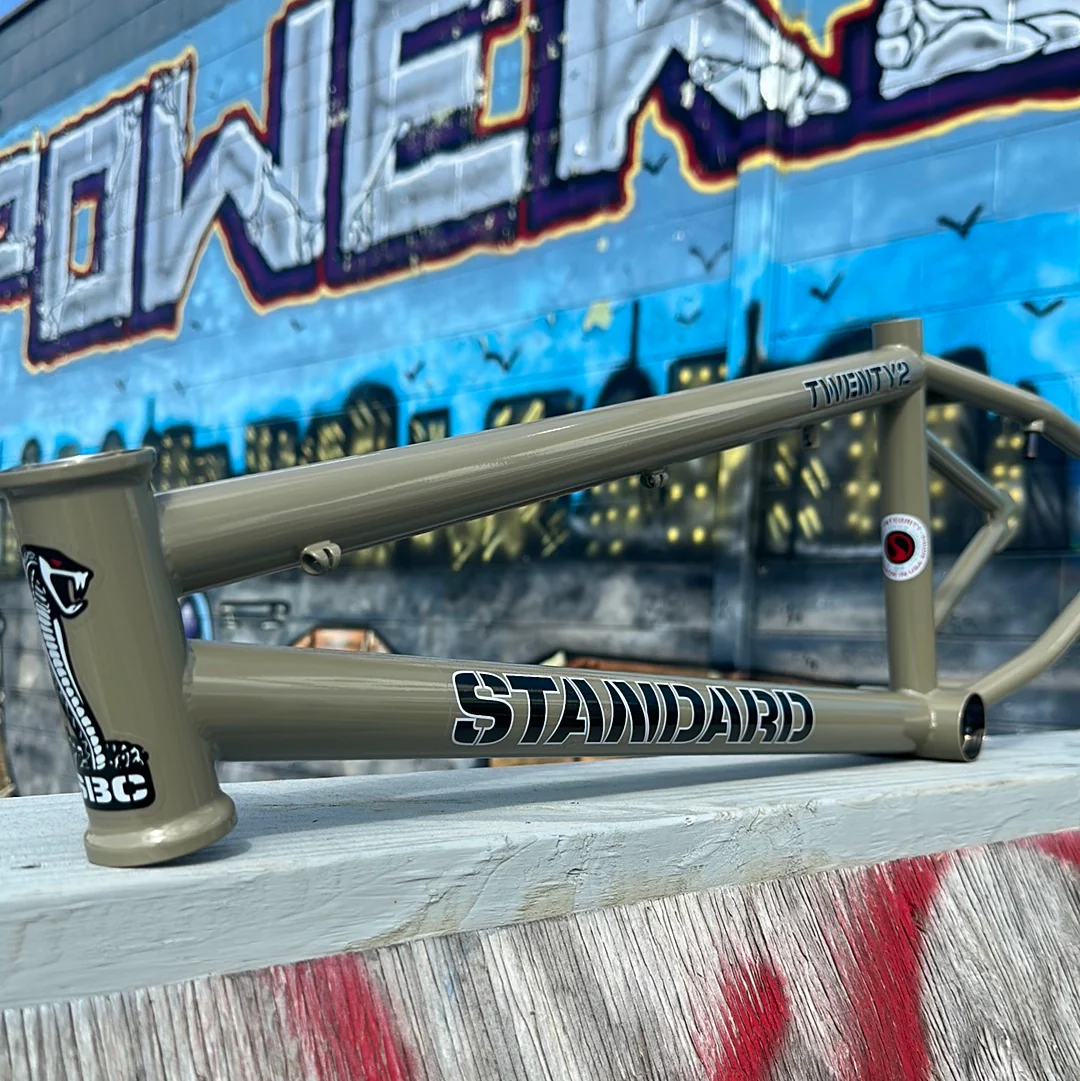

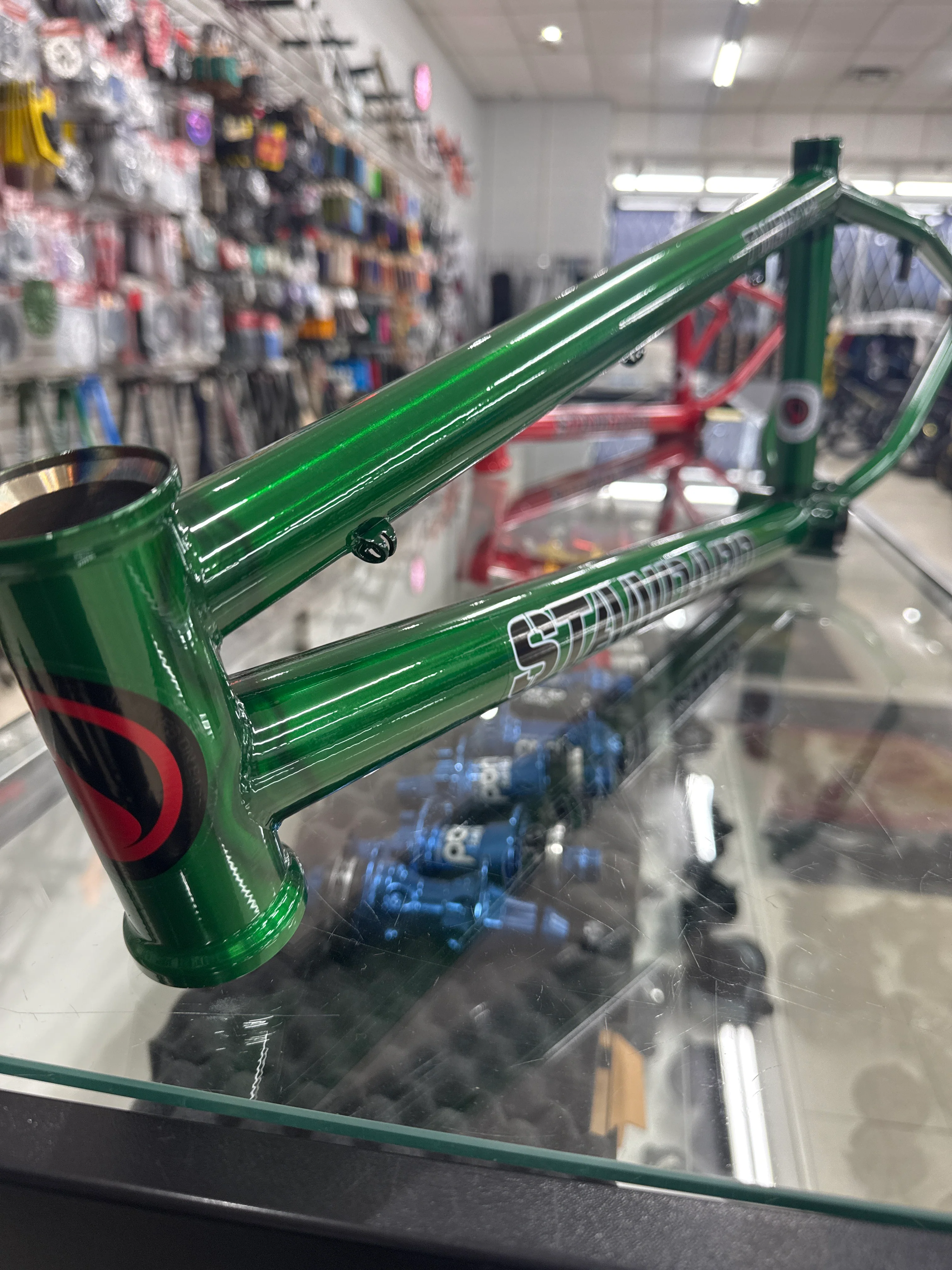

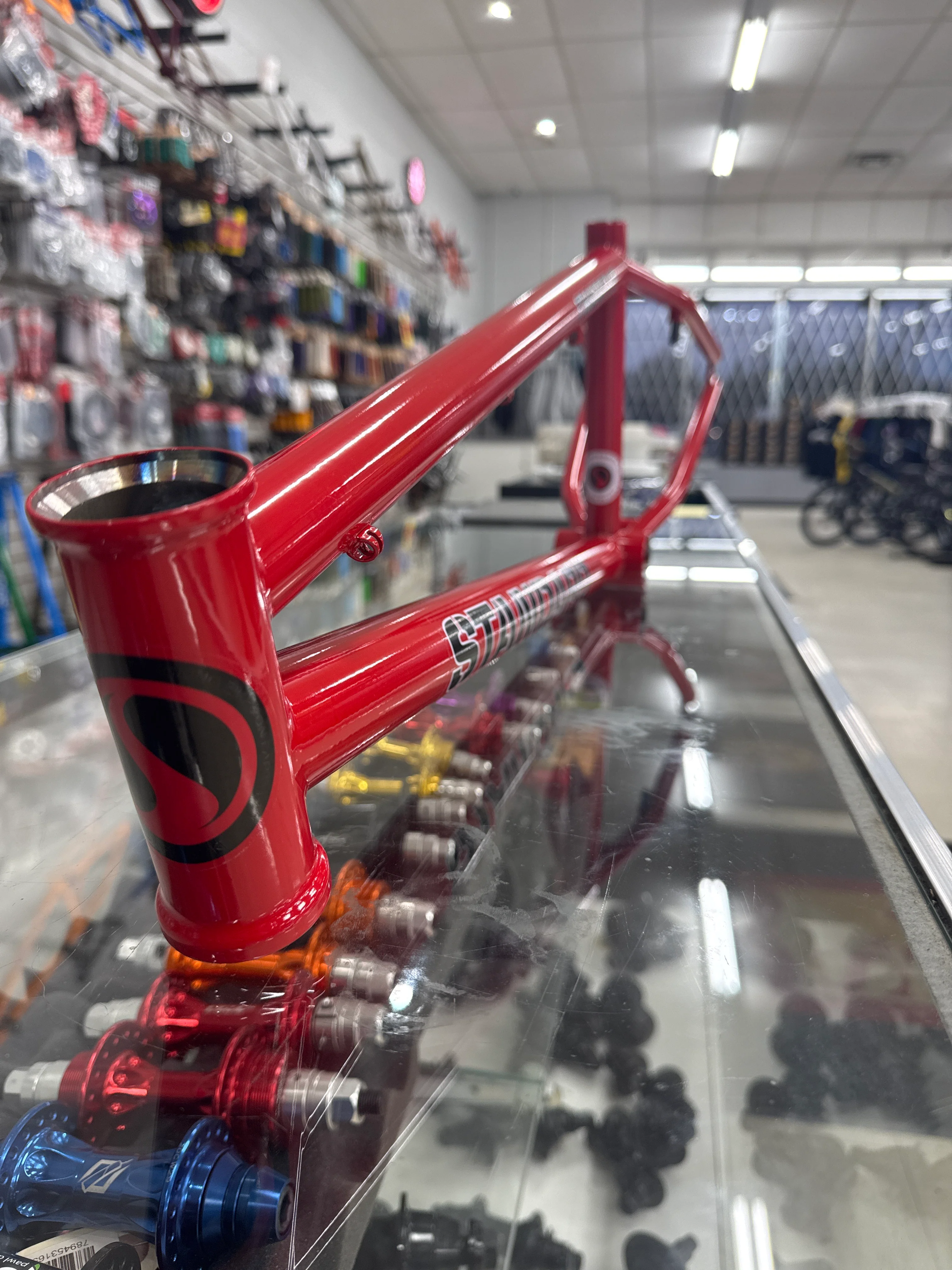

STANDARD BYKE 22" FRAME

This frame is built to take 22" wheels.  It's built using the 250L/Trailboss tube set.  22" wheels offer similar handling to 20" wheels but with the added speed and stability similar to 24" wheels.



Top tube length- 21", 21.25", 21.5", 22", 22.5".

Integrated head tube.

74.5* Head tube angle.

71* Seat tube angle.

25.4MM seat tube.

8.5" stand over.

12.5" BB height.

Mid BB

14" rear.

14MM dropouts.

990s welded - seat stay.
